Chair Accumulator Blow Molding Equipment 160l Blow Moulding Machine For Plastic Bottle

Chair Accumulator Blow Molding Equipment 160l Blow Moulding Machine For Plastic Bottle

Products - Accumulator Blow Moulding Machine
  • High Light

    chair blow molding equipment

    ,

    accumulator blow molding equipment

    ,

    160l blow moulding machine for plastic bottle

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    160L
  • Product

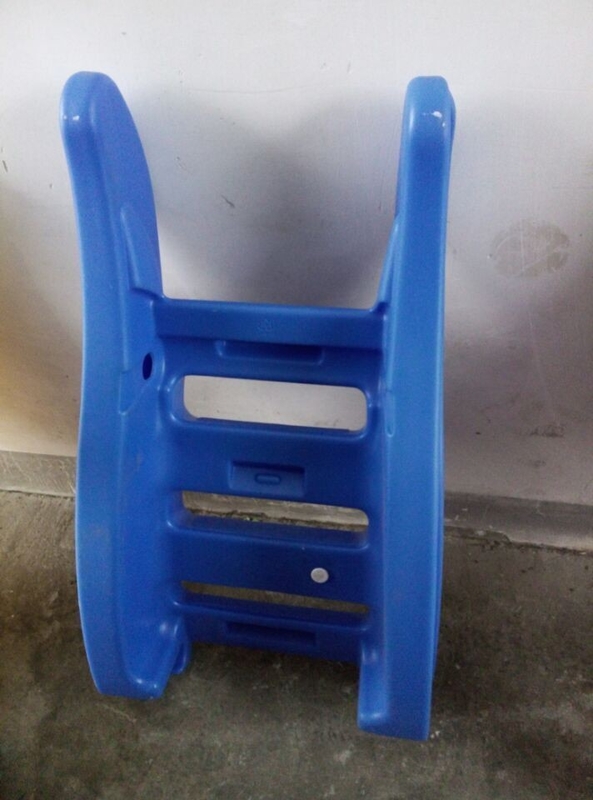

    Plastic Chair Toys
  • Clamping Type
    C Type-Tie Bar
  • Die Head Type
    Accmulator Type
  • Station
    Single Station
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBC-110
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

Chair Accumulator Blow Molding Equipment 160l Blow Moulding Machine For Plastic Bottle

  • Chair Accumulator Blow Molding Equipment 160l Blow Moulding Machine For Plastic Bottle
  • Chair Accumulator Blow Molding Equipment 160l Blow Moulding Machine For Plastic Bottle
  • Chair Accumulator Blow Molding Equipment 160l Blow Moulding Machine For Plastic Bottle
  • Chair Accumulator Blow Molding Equipment 160l Blow Moulding Machine For Plastic Bottle
Get Price Contact Now

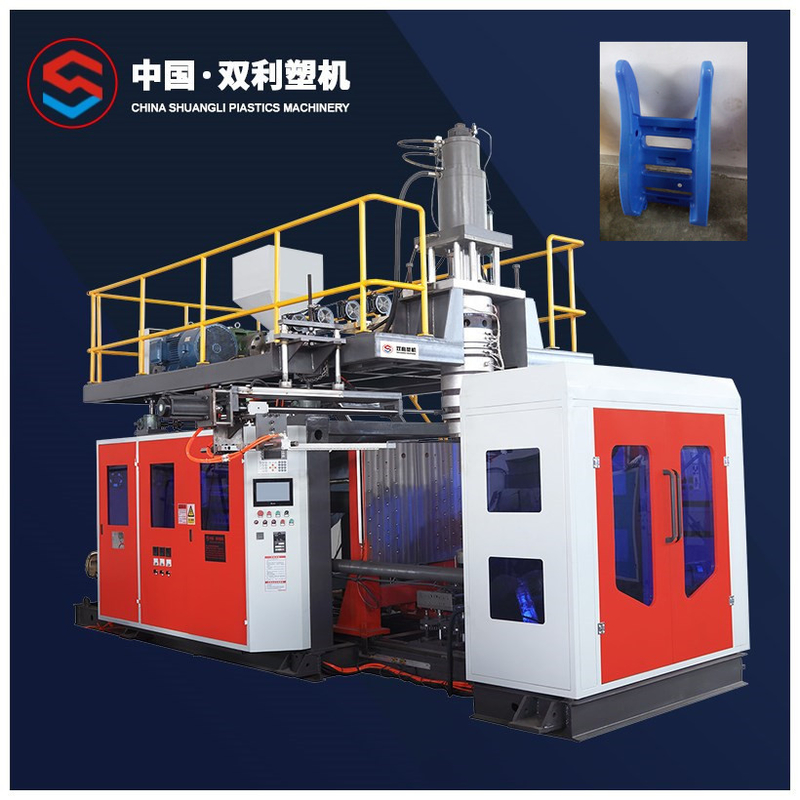

1 Die Head Accmulator Type Single Station Plastic Blow Molding Machine For Plastic Chair Toys



SLBC series: (German model)



1: the whole system is equipped with safety protection grating, to ensure the safety of the production process.

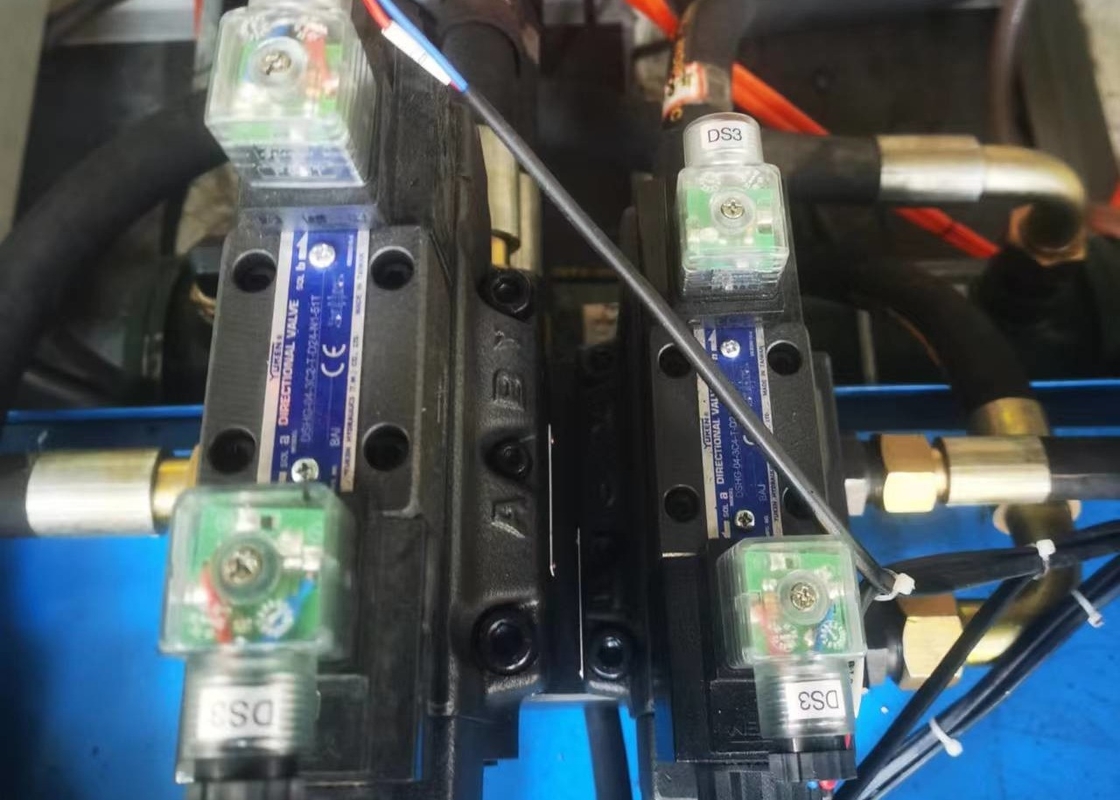

2.The maintenance of the pneumatic system consists of the following aspects:

(1) Ensure that clean compressed air is supplied to the pneumatic system.

(2) Ensure that the air used to drive the cylinder contains an appropriate amount of lubricant.

(3) Ensure that the pneumatic system has a suitable working pressure and that the pneumatic device has a suitable speed of movement.

(4) Ensure the tightness of the pneumatic system.



.





SPECIFICATION SLBC-110
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 160
OUPUT(DRY CYCLE) PC/HR 360
MACHINE DIMENSION (LxWxH ) MM 7500x3600x5800
TOTAL WEIGHT TON 20T
CLAMPING UNIT 　
CLAMPING FORCE KN 680
PLATEN OPENING STROKE MM 600-1400
PLATEN SIZE(WxH) MM 1400x1600
MAX MOULD SIZE(WxH) MM 1200x1900
MOLD THICKNESS MM 610-880
EXTRUDER UNIT 　
SCREW DIAMETER MM 110
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 220
BARREL HEATING POWER KW 36
NUMBER OF HEATING ZONE ZONE 6
EXTRUDER MOTOR RATED POWER KW 75
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 5
POWER OF DIE HEATING KW 35
MAX DIE-PIN DIAMETER MM 550
POWER 　
MAX DRIVE POWER KW 120
TOTAL POWER KW 130
FAN POWER OF SCREW KW 4.8
AIR PRESSURE MPA 0.8-1.2
AIR CONSUMPTION M3/MIN 0.8
AVERAGE ENERGY CONSUMPTION KW 56
ACCUMULATOR CAPACITY L 20
