High Light
1l Blow Molding Mold
,lubricant bottle Blow Molding Mold
,Alu moulding mould
-

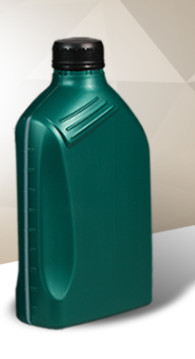

ProductLubricant Oil Bottle Mold
-
Max Capacity1L
-
TypeExtrusion Blow Mold
-
MaterialAlu+BeCu
-
Cavity1 Or 2
-
FunctionDeflashing
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO9001:2015, CE
-
Model NumberSLM
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month

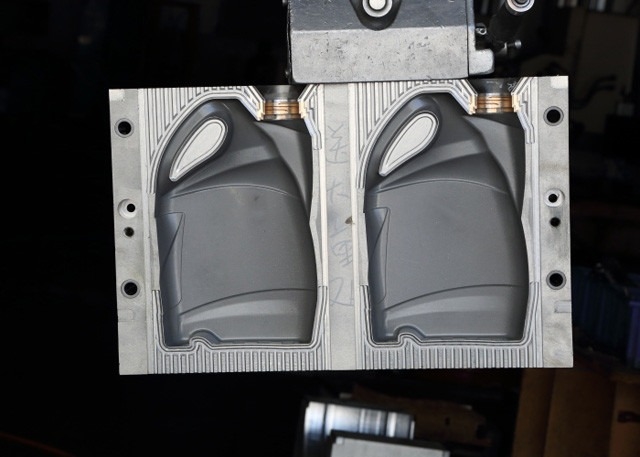

1l Blow Molding Mold Lubricant Bottle Alu Moulding Mould
Blow Mold Lubricant Oil Bottle for Blow Molding Machine
1.Mold material: Alu+BeCu
2. For blow machine with Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.
Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
3.For blow machine.
| SPECIFICATION | SLX-55 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 2 |
| NUMBER OF DIE HEAD | SET | 1,2,3,4,6 |
| OUPUT(DRY CYCLE) | PC/HR | 1000x2 |
| MACHINE DIMENSION (LxWxH ) | MM | 3200x1600x2200 |
| TOTAL WEIGHT | TON | 3T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 40 |
| PLATEN OPENING STROKE | MM | 120-420 |
| PLATEN SIZE(WxH) | MM | 360X300 |
| MAX MOULD SIZE(WxH) | MM | 240x400 |
| MOLD THICKNESS | MM | 105-200 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 55 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 45 |
| BARREL HEATING POWER | KW | 12 |
| NUMBER OF HEATING ZONE | ZONE | 3 |
| EXTRUDER MOTOR RATED POWER | KW |
7.5(11) |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 2-5 |
| POWER OF DIE HEATING | KW | 6 |
| CENTER DISTANCE OF DOUBLE DIE | MM | 1320 |
| CENTER DISTANCE OF THREE DIE | MM | 80 |
| CENTER DISTANCE OF FOUR DIE | MM | 60 |
| CENTER DISTANCE OF SIX DIE | MM | 60 |
| MAX DIE-PIN DIAMETER | MM | 150 |
| POWER | ||
| MAX DRIVE POWER | KW | 18 |
| TOTAL POWER | KW | 22 |
| FAN POWER OF SCREW | KW | 0.42 |
| AIR PRESSURE | MPA | 0.6 |
| AIR CONSUMPTION | M3/MIN | 0.4 |
| AVERAGE ENERGY CONSUMPTION | KW | 8 |
