SHUANGLI chemical barrel casting moulds
,SHUANGLI chemical barrel casting mould
,chemical barrel casting mould SHUANGLI
-
ProductPlastic Chemical Barre
-
Max Capacity25L
-
TypeExtrusion Blow Mold
-
MaterialSS2316
-
FunctionAuto Deflashing
-
CavityOne
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO9001:2015, CE
-
Model NumberSLM-1
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month

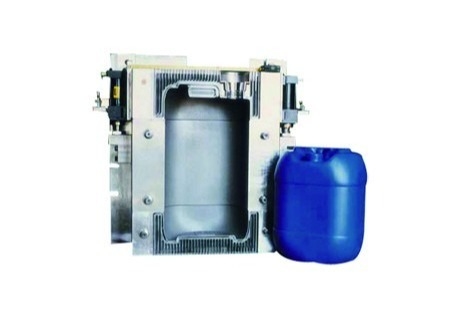

25L Blow Molding Mold Auto Deflashing Chemical Barrel Casting Moulds

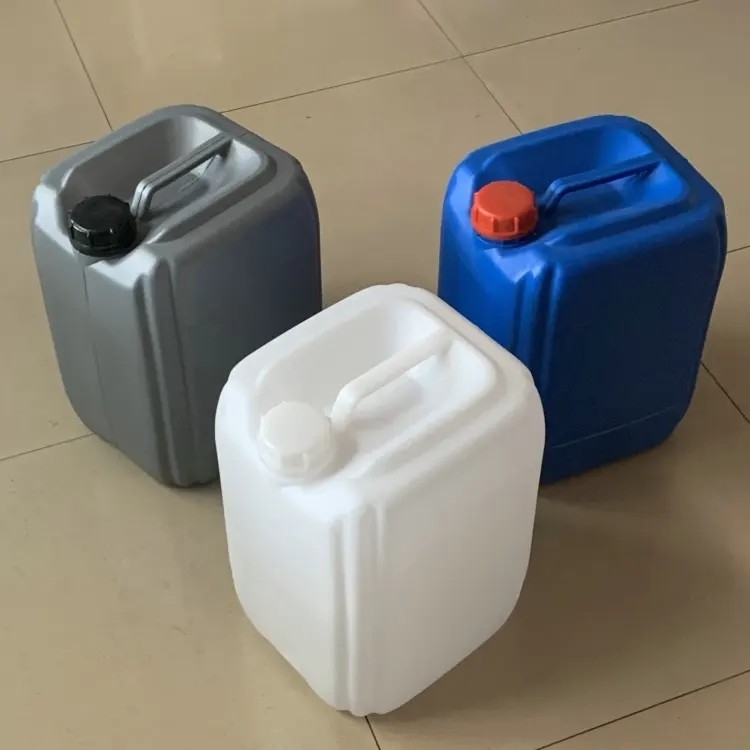

Blow Mold 25L Plastic Chemical Barrel with Auto-deflashing System for Blow Molding Machine
1: this machine is suitable for the production 25L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speedF aster, run more smoothly
2.Mold material: SS2316, Alu+BeCu, P20.
3,Machine characteristics:
For packaging from 20 to 30 liters capacity.
Electric system: PLC and human-machine interface
Hydraulic system: YUKEN hydraulic valves and pump
Plastisizing system: Effective, energy-saved screw
Extruding system : Invertor and harden surface gear box
Clamping unit : Adopting linear slideway with precision up to um grade
Parison injecting: Single hydraulic cylinder without non-synchronization
4. For blow Machine
| SPECIFICATION | SLBC-80 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 30 |
| OUPUT(DRY CYCLE) | PC/HR | 600 |
| MACHINE DIMENSION (LxWxH ) | MM | 5300x3000x3500 |
| TOTAL WEIGHT | TON | 11T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 200 |
| PLATEN OPENING STROKE | MM | 350-850 |
| PLATEN SIZE(WxH) | MM | 750x780 |
| MAX MOULD SIZE(WxH) | MM | 600x1000 |
| MOLD THICKNESS | MM | 360-500 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 80 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 120 |
| BARREL HEATING POWER | KW | 16 |
| NUMBER OF HEATING ZONE | ZONE | 4 |
| EXTRUDER MOTOR RATED POWER | KW | 30 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 4 |
| POWER OF DIE HEATING | KW | 15 |
| MAX DIE-PIN DIAMETER | MM | 250 |
| POWER | ||
| MAX DRIVE POWER | KW | 42 |
| TOTAL POWER | KW | 82 |
| FAN POWER OF SCREW | KW | 3.2 |
| AIR PRESSURE | MPA | 0.8-1.2 |
| AIR CONSUMPTION | M3/MIN | 0.8 |
| AVERAGE ENERGY CONSUMPTION | KW | 32 |
| ACCUMULATOR CAPACITY | L | 6 |
