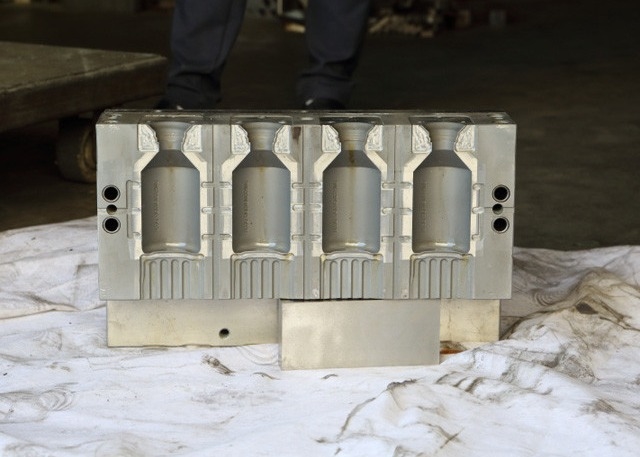

500ml Blow Molding Mold Milk Bottle , BeCu Die Casting Mold

Get Price Contact Now

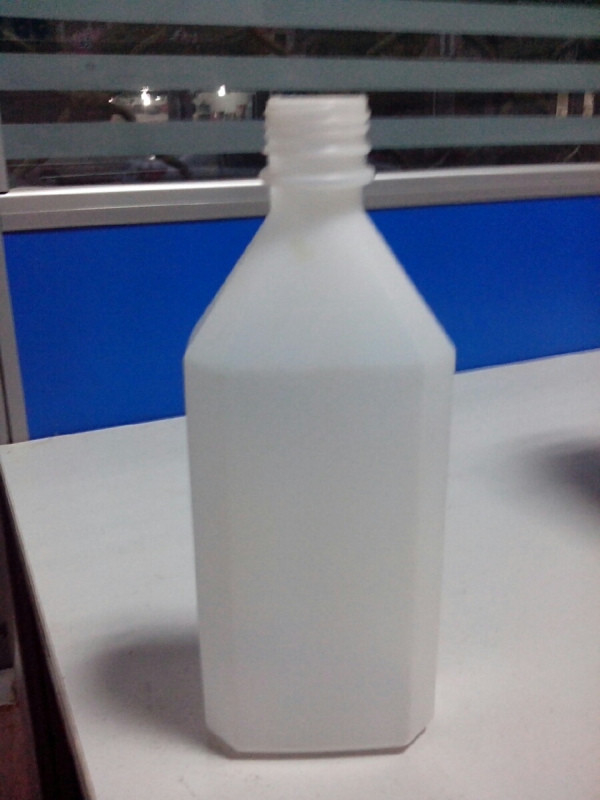

Blow Mold Plastic Milk Bottle with Auto-deflashing system for Blow Molding Machine

1.Mold material: SS2316, Alu+BeCu, P20.

2. For Blow Mold Plastic Milk Bottle with Auto-deflashing system for Blow Molding Machine

Toggle mold locking mechanism guarantees big clamping force, no expansion of mold, no increase of high pressure air consumption.

Double-mold, double-blowing technique guarantees the product stability in the process of hot-filling.

High-performance chain driven by servo motor ensures stable, fast and accurate operation.

High-pressure cylinder sealing and independent controlled stretch bar guarantees reliable sealing and accurate stretching.

3. For blow machine,

SPECIFICATION		SLX-65
MATERIAL		PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY	L	5
NUMBER OF DIE HEAD	SET	1,2,3,4,6
OUPUT(DRY CYCLE)	PC/HR	950x2
MACHINE DIMENSION (LxWxH )	MM	3800x1800x2600
TOTAL WEIGHT	TON	3.8T
CLAMPING UNIT
CLAMPING FORCE	KN	65
PLATEN OPENING STROKE	MM	170-520
PLATEN SIZE(WxH)	MM	450x400
MAX MOULD SIZE(WxH)	MM	330x500
MOLD THICKNESS	MM	175-250
EXTRUDER UNIT
SCREW DIAMETER	MM	65
SCREW L/D RATIO	L/D	25
MELTING CAPACITY	KG/HR	70
BARREL HEATING POWER	KW	15
NUMBER OF HEATING ZONE	ZONE	3
EXTRUDER MOTOR RATED POWER	KW	11(15)
DIE HEAD
NUMBER OF DIE HEATING ZONE	ZONE	2-5
POWER OF DIE HEATING	KW	6
CENTER DISTANCE OF DOUBLE DIE	MM	130
CENTER DISTANCE OF THREE DIE	MM	80
CENTER DISTANCE OF FOUR DIE	MM	60
CENTER DISTANCE OF SIX DIE	MM	60
MAX DIE-PIN DIAMETER	MM	260
POWER
MAX DRIVE POWER	KW	26
TOTAL POWER	KW	32
FAN POWER OF SCREW	KW	0.42
AIR PRESSURE	MPA	0.6
AIR CONSUMPTION	M3/MIN	0.5
AVERAGE ENERGY CONSUMPTION	KW	13
