5 Gallon Plastic Injection Molding Mold Design And Construction Fundamentals
-
High Light
5 gallon injection molding mold
,Plastic injection molding mold
,plastic injection molding mold design and construction fundamentals
-
ProductPP Water Bottle Mold
-
Max Capacity5 Gallon
-
TypeExtrusion Blow Mold
-
MaterialSS2316, Alu+BeCu, P20.
-
FunctionAuto Deflashing
-
Cavity1
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO9001:2015, CE
-
Model NumberSLM
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month
5 Gallon Plastic Injection Molding Mold Design And Construction Fundamentals

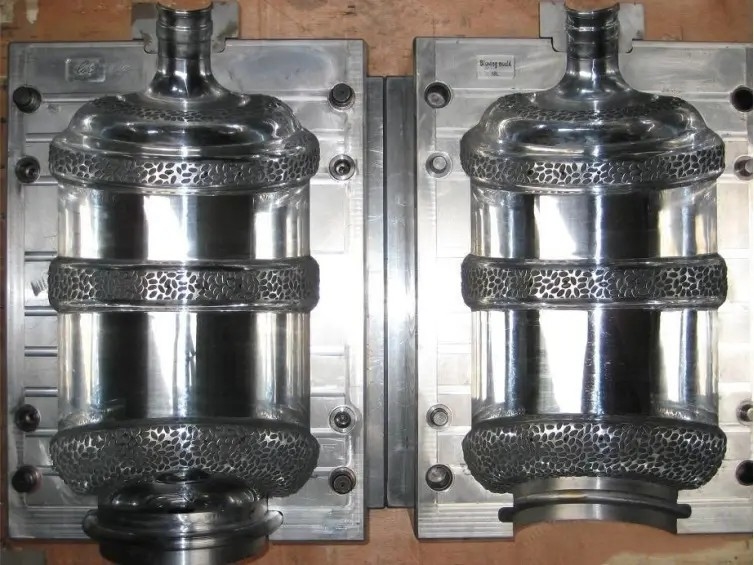

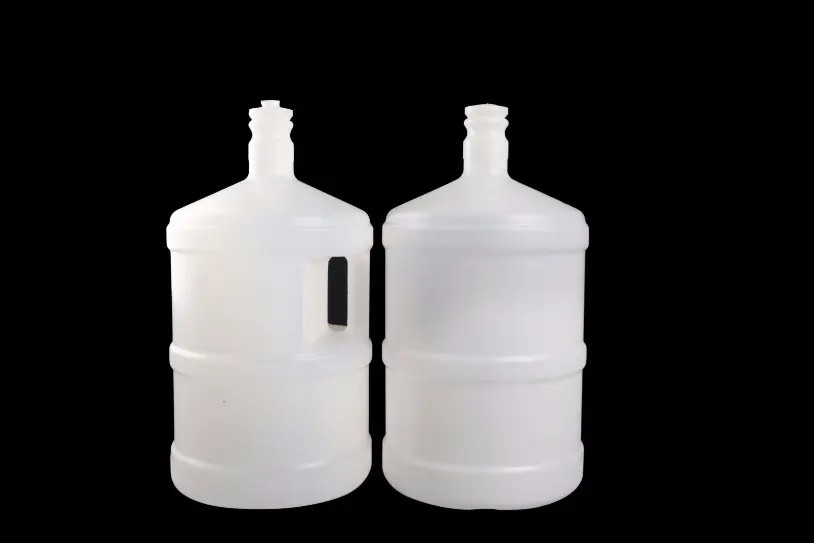

Blow Mold 5 Gallon PP Plastic Water Bottle with Auto-deflashing system
1.Mold material: SS2316, Alu+BeCu, P20.
2.Blow Mold 5 Gallon PP Plastic Water Bottle with Auto-deflashing system for Blow Molding Machine
Latest high speed PLC and Chinese-English HMl are adopted. The time setting can be accurate in 0.01 second. It makes the operation more easy and the technical setting more accurate.High quality pneumatic parts are imported from Europe or Japan. Fast feedback solenoid valve (from Germany) is adopted in high-pressure blowing. It ensures the second blow time accurate and controllable.
Close-loop heating control system with cor-responsive high accurate digital meter, and imported adjustable high power frequency controller, make sure stable heating, energy saving and not to be affected by fluctuated voltage.
3.For blow machine.
| SPECIFICATION | SLBC-100 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 120 |
| OUPUT(DRY CYCLE) | PC/HR | 360 |
| MACHINE DIMENSION (LxWxH ) | MM | 6800x3600x5200 |
| TOTAL WEIGHT | TON | 16T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 400 |
| PLATEN OPENING STROKE | MM | 600-1400 |
| PLATEN SIZE(WxH) | MM | 1100x1100 |
| MAX MOULD SIZE(WxH) | MM | 900x1400 |
| MOLD THICKNESS | MM | 610-880 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 100 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 180 |
| BARREL HEATING POWER | KW | 30 |
| NUMBER OF HEATING ZONE | ZONE | 5 |
| EXTRUDER MOTOR RATED POWER | KW | 50 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 5 |
| POWER OF DIE HEATING | KW | 25 |
| MAX DIE-PIN DIAMETER | MM | 450 |
| POWER | ||
| MAX DRIVE POWER | KW | 70 |
| TOTAL POWER | KW | 110 |
| FAN POWER OF SCREW | KW | 4 |
| AIR PRESSURE | MPA | 0.8-1.2 |
| AIR CONSUMPTION | M3/MIN | 0.8 |
| AVERAGE ENERGY CONSUMPTION | KW | 42 |
| ACCUMULATOR CAPACITY | L | 12 |
Our products are sold all over the world, you can rest assured.
