ProductEngine Oil Bottle Mold
-
Max Capacity1L
-
TypeExtrusion Blow Mold
-
MaterialSS2316, Alu+BeCu, P20.
-
Cavity1-3 Cavities
-
FunctionDeflashing
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO9001:2015, CE
-
Model NumberSLM
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month

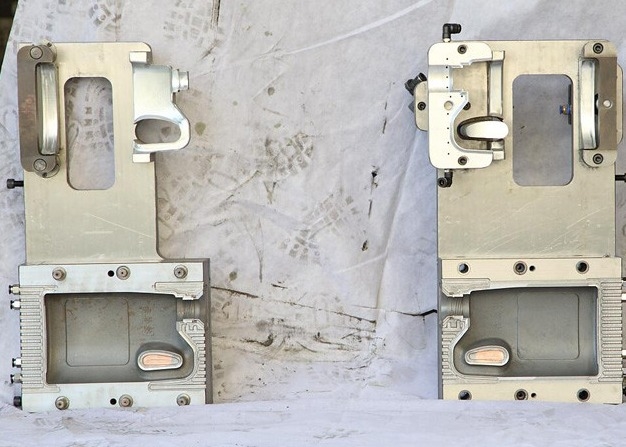

P20 1L Blow Moulding Moulds Oil Bottle Casting Mold

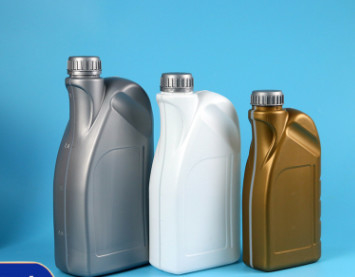

Blow Mold Plastic Engine Oil Bottle with Auto-deflashing system for Blow Molding Machine
1.Mold material: SS2316, Alu+BeCu, P20.
2. For Blow Mold Plastic Engine Oil Bottle with Auto-deflashing system for Blow Molding Machine,
Specially designed screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers’ top quality requirement.
Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
Multiple-way PID controlled temperature heating is precise and stable.
3, For Blow machine.
| SPECIFICATION | SLBK-65 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 5 |
| NUMBER OF DIE HEAD | SET | 1,2,3,4,6 |
| OUPUT(DRY CYCLE) | PC/HR | 950x2 |
| MACHINE DIMENSION (LxWxH ) | MM | 4000x2600x2200 |
| TOTAL WEIGHT | TON | 7T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 65 |
| PLATEN OPENING STROKE | MM | 170-520 |
| PLATEN SIZE(WxH) | MM | 300x400 |
| MAX MOULD SIZE(WxH) | MM | 400x400 |
| MOLD THICKNESS | MM | 175-250 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 65 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 70 |
| BARREL HEATING POWER | KW | 15 |
| NUMBER OF HEATING ZONE | ZONE | 3 |
| EXTRUDER MOTOR RATED POWER | KW | 15 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 2-5 |
| POWER OF DIE HEATING | KW | 6 |
| CENTER DISTANCE OF DOUBLE DIE | MM | 130 |
| CENTER DISTANCE OF THREE DIE | MM | 80 |
| CENTER DISTANCE OF FOUR DIE | MM | 60 |
| CENTER DISTANCE OF SIX DIE | MM | 60 |
| MAX DIE-PIN DIAMETER | MM | 260 |
| POWER | ||
| MAX DRIVE POWER | KW | 26 |
| TOTAL POWER | KW | 42 |
| FAN POWER OF SCREW | KW | 2.4 |
| AIR PRESSURE | MPA | 0.6 |
| AIR CONSUMPTION | M3/MIN | 0.5 |
| AVERAGE ENERGY CONSUMPTION | KW | 18.5 |
