CE p20 blow molding molds
,p20 blow molding molds SHUANGLI
,p20 blow molding molds slm
-
ProductPlastic Water Bottle Mold
-
Max Capacity5L
-
TypeExtrusion Blow Mold
-
MaterialSS2316, Alu+BeCu, P20.
-
Cavity1-2 Cavities
-
FunctionDeflashing
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO9001:2015, CE
-
Model NumberSLM
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month

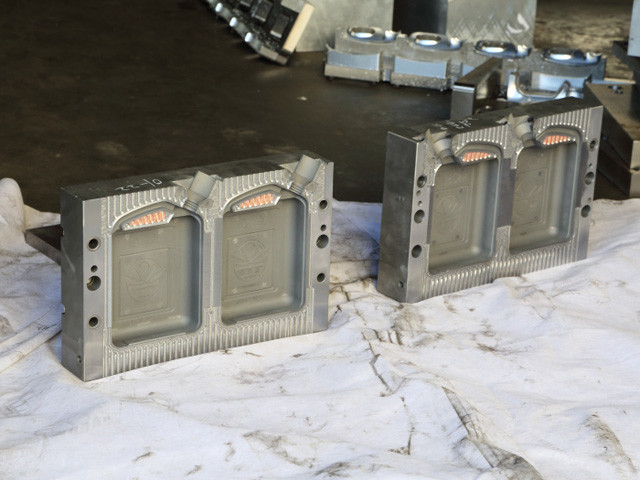

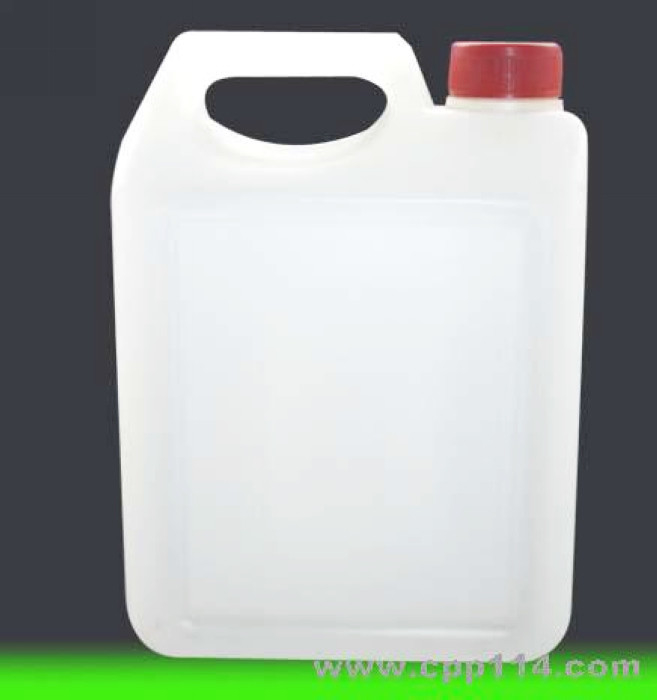

Water Bottle P20 Blow Molding Mold , 5L Plastic Molding
Blow Mold Plastic Water Bottle with Auto-deflashing system for Blow Molding Machine
1.Mold material: SS2316, Alu+BeCu, P20.
2.Blow Mold Plastic Water Bottle with Auto-deflashing system for Blow Molding Machine
Centralized heating makes even, stable effect, and reduces power consumption mostly.
Close-loop heating control system with cor responsive high accurate digital meter, and imported adjustable high power frequency controller, make sure stable heating, energy saving and not to be affected by fluctuated voltage. is fully considered for lower power consumption and higher production efficiency.
3, For blow machine.
| SPECIFICATION | SLBU-65 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 5 |
| NUMBER OF DIE HEAD | SET | 1,2,3,4,6,8 |
| OUPUT(DRY CYCLE) | PC/HR | 1000x2 |
| MACHINE DIMENSION (LxWxH ) | MM | 4000x2300x2200 |
| TOTAL WEIGHT | TON | 6.5T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 65 |
| PLATEN OPENING STROKE | MM | 220-520 |
| PLATEN SIZE(WxH) | MM | 400x430 |
| MAX MOULD SIZE(WxH) | MM | 460x430 |
| MOLD THICKNESS | MM | 255-280 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 65 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 70 |
| BARREL HEATING POWER | KW | 15 |
| NUMBER OF HEATING ZONE | ZONE | 3 |
| EXTRUDER MOTOR RATED POWER | KW | 15 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 2-5 |
| POWER OF DIE HEATING | KW | 6 |
| CENTER DISTANCE OF DOUBLE DIE | MM | 130 |
| CENTER DISTANCE OF THREE DIE | MM | 110 |
| CENTER DISTANCE OF FOUR DIE | MM | 100 |
| CENTER DISTANCE OF SIX DIE | MM | 80 |
| MAX DIE-PIN DIAMETER | MM | 180 |
| POWER | ||
| MAX DRIVE POWER | KW | 18 |
| TOTAL POWER | KW | 50 |
| FAN POWER OF SCREW | KW | 2.4 |
| AIR PRESSURE | MPA | 0.6 |
| AIR CONSUMPTION | M3/MIN | 0.4 |
| AVERAGE ENERGY CONSUMPTION | KW | 18 |
