Ningbo Shuangde Tianli Machinery Manufacturing Co., Ltd. 86--13566335186
Extrusion Blow Molding Mold Parts Oil Bottle 1l Blow Moulding Moulds

Extrusion Blow Molding Mold Parts Oil Bottle 1l Blow Moulding Moulds

  • High Light

    SHUANGLI 1l blow molding molds

    ,

    SHUANGLI 1l blow molding mold

    ,

    1l blow molding mold SHUANGLI

  • Product
    Plastic Motor Oil Bottle Mold
  • Max Capacity
    1L
  • Type
    Extrusion Blow Mold
  • Material
    SS2316, Alu+BeCu, P20.
  • Function
    Deflashing
  • Cavity
    1-4 Cavities
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO9001:2015, CE
  • Model Number
    SLM
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

Extrusion Blow Molding Mold Parts Oil Bottle 1l Blow Moulding Moulds

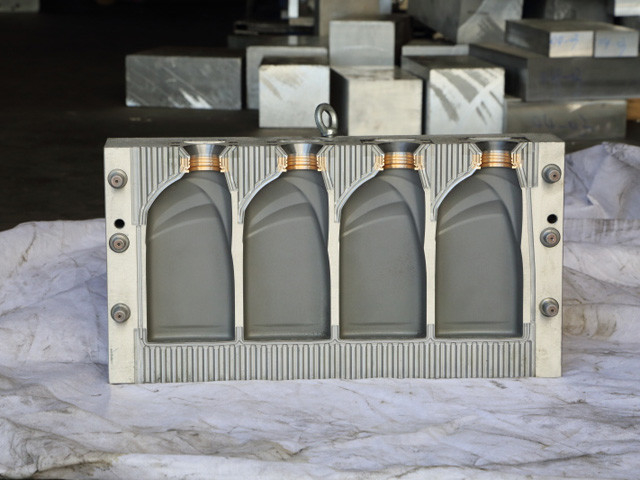

Blow Mold Plastic Motor Oil Bottle with Auto-deflashing system for Blow Molding Machine



1.Mold material: SS2316, Alu+BeCu, P20.



2. For Blow Mold Plastic Motor Oil Bottle with Auto-deflashing system for Blow Molding Machine

Automatic perform handling equipment and robots for perform loading & take-out make production process fully automatic.
Latest high speed PLC and Chinese-English HMI are adopted. The time setting can be accurate in 0.01 second. It makes the operation more easy and the technical setting more accurate.
High quality pneumatic parts are imported from Europe or Japan. Fast feedback solenoid valve (from Germany) is adopted in high-pressure blowing. It ensures the second blow time accurate and controllable.



3. For blow machine.



SPECIFICATION SLBU-80
MATERIAL   PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 10
NUMBER OF DIE HEAD SET 1,2,3,4,6,8
OUPUT(DRY CYCLE) PC/HR 950x2
MACHINE DIMENSION (LxWxH ) MM 4600x2600x2600
TOTAL WEIGHT TON 7.5T
CLAMPING UNIT
CLAMPING FORCE KN 86
PLATEN OPENING STROKE MM 300-600
PLATEN SIZE(WxH) MM 450x450
MAX MOULD SIZE(WxH) MM 500x450
MOLD THICKNESS MM 305-400
EXTRUDER UNIT
SCREW DIAMETER MM 80
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 120
BARREL HEATING POWER KW 20
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 30
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 160
CENTER DISTANCE OF THREE DIE MM 110
CENTER DISTANCE OF FOUR DIE MM 100
CENTER DISTANCE OF SIX DIE MM 80
MAX DIE-PIN DIAMETER MM 260
POWER
MAX DRIVE POWER KW 35
TOTAL POWER KW 82
FAN POWER OF SCREW KW 3.2
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.5
AVERAGE ENERGY CONSUMPTION KW 22
