Jerry Can Blow Molding Machine 50 - 200L For Plastic Chemical Barrel

Jerry Can Blow Molding Machine 50 - 200L For Plastic Chemical Barrel

  • High Light

    Jerry Can Blow Moulding Machine

    ,

    Plastic Chemical Barrel Blow Molding Machine

    ,

    Accumulator Blow Moulding Machine 200L

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    50-200L
  • Station
    Single Station
  • Product
    Plastic Chemical Barrel
  • Machine Type
    C Type -Tie Bar
  • Die Head
    1 Head
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBC
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

Jerry Can Blow Molding Machine 50 - 200L For Plastic Chemical Barrel

Jerry Can Blow Molding Machine 1 Die Head for Plastic Chemical Barrel



SLBC series: (German model)



:Jerry Can Blow Molding Machine 1 Die Head for Plastic Chemical Barrel, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.





The equipment:

1. plasticizing system

2. the head mechanism

3. the basic frame

4. hydraulic system

5. pneumatic system

6. water cooling system

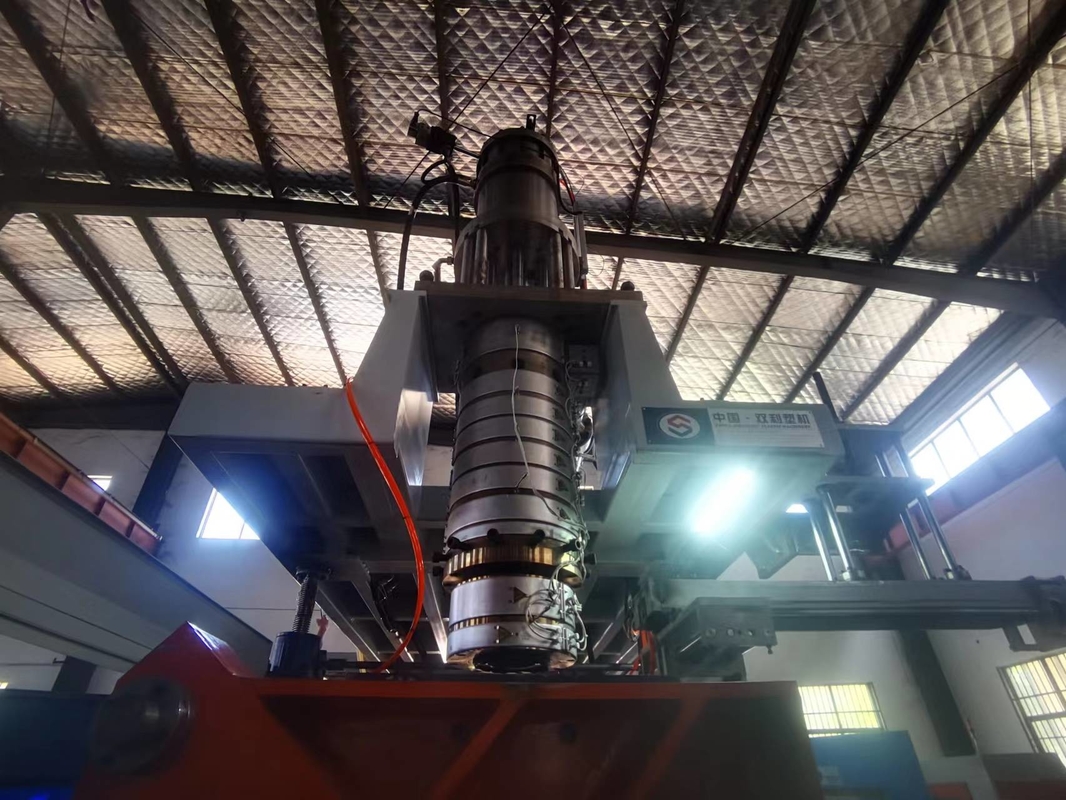

7. the die head

8. blowing device

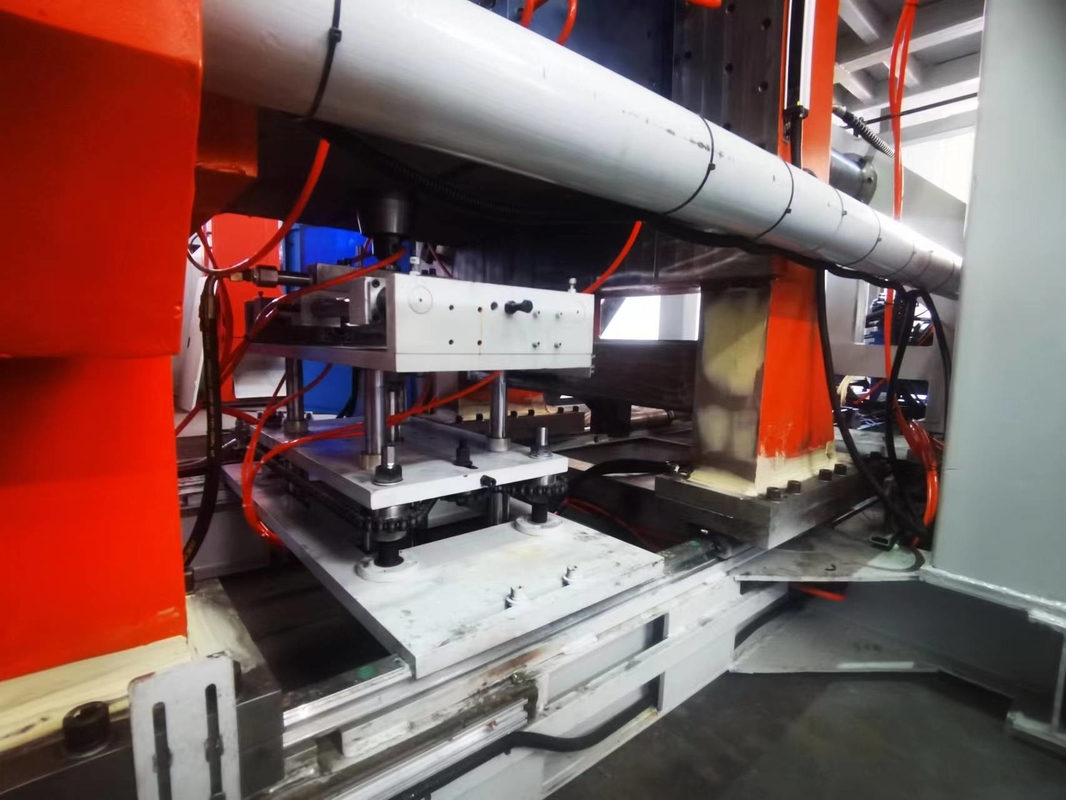

9. shifting mold, opening and closing mold device

10. glue tube cutting device

11. electronic control system



SPECIFICATION SLBC-120
MATERIAL   PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 160
OUPUT(DRY CYCLE) PC/HR 300
MACHINE DIMENSION (LxWxH ) MM 7500x4200x6200
TOTAL WEIGHT TON 22T
CLAMPING UNIT
CLAMPING FORCE KN 800
PLATEN OPENING STROKE MM 600-1400
PLATEN SIZE(WxH) MM 1400x1600
MAX MOULD SIZE(WxH) MM 1200x1900
MOLD THICKNESS MM 610-880
EXTRUDER UNIT
SCREW DIAMETER MM 120
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 280
BARREL HEATING POWER KW 42
NUMBER OF HEATING ZONE ZONE 6
EXTRUDER MOTOR RATED POWER KW 90
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 5
POWER OF DIE HEATING KW 38
MAX DIE-PIN DIAMETER MM 500
POWER
MAX DRIVE POWER KW 125
TOTAL POWER KW 180
FAN POWER OF SCREW KW 4.8
AIR PRESSURE MPA 0.8-1.2
AIR CONSUMPTION M3/MIN 0.8
AVERAGE ENERGY CONSUMPTION KW 72
ACCUMULATOR CAPACITY L 30
