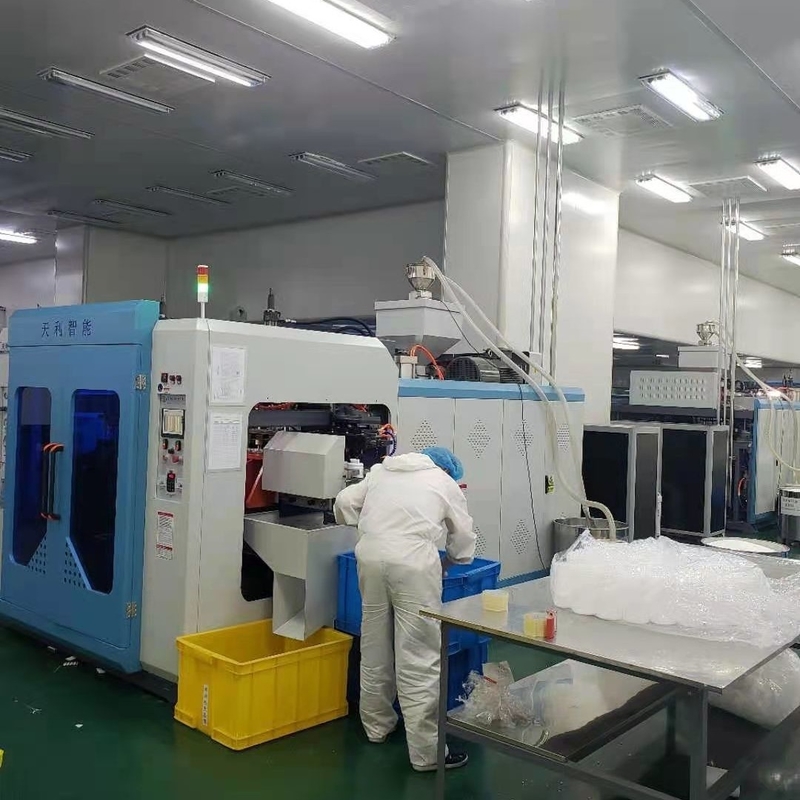

Fully Automatic Accumulator Blow Moulding Machine For Plastic Water Bottle

Fully Automatic Blow Moulding Machine 1 Die Head for Plastic Water Bottle

SLBC series: (German model)

1:Fully Automatic Blow Moulding Machine, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.

2:Fully Automatic Blow Moulding Machine, The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.

3. Fully Automatic Blow Moulding Machine,The operation panel is equipped with a power key switch, a touch display, an alarm, a cutter heat, a cycle start, an emergency stop, a twisted motor switch, a twister motor speed switch.

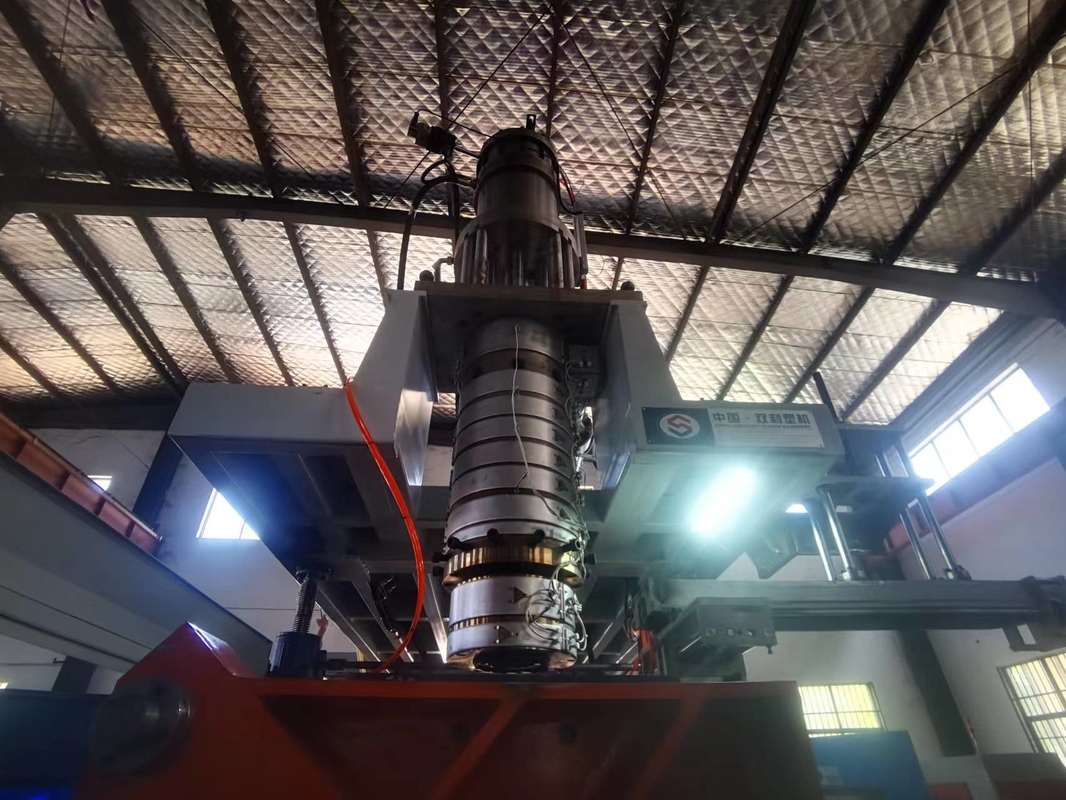

The plasticizing system mainly consists of: twisted material frequency conversion motor, gear reducer, barrel and screw, cast aluminum heater, cooling fan, fan seat, hopper, die, die lifting device, platform, V-belt pulley, V belt . Its function is to properly heat, extrude, shear, mix and plasticize the plastic material and then feed it into the extrusion die to form a glue tube . When the system is working, the barrel is heated at a high temperature! Please pay attention to safety! Prevent burns!
