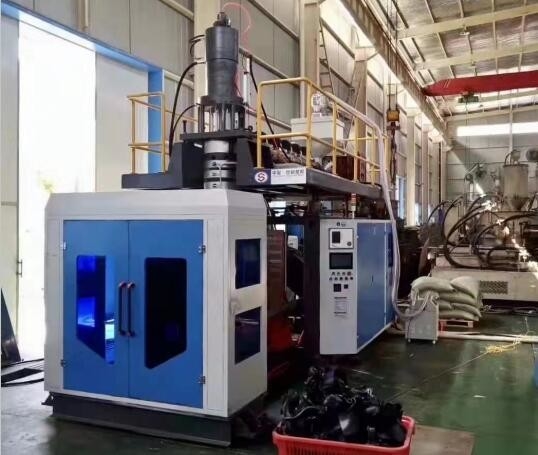

HDPE Bottle Accumulator Blow Moulding Machine 1 Die Head For Plastic Parts

HDPE Bottle Blow Molding Machine 1 Die Head for Plastic parts

SLBC series: (German model)

1:HDPE Bottle Blow Molding Machine, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.

2:HDPE Bottle Blow Molding Machine, The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.

3. FHDPE Bottle Blow Molding Machine,The operation panel is equipped with a power key switch, a touch display, an alarm, a cutter heat, a cycle start, an emergency stop, a twisted motor switch, a twister motor speed switch.

When item require different diameter and shape of glue tube, the mold core and the mold sleeve of the lowermost part of the corresponding die need to be replaced. The connection dimensions of the core and the mold sleeve are as follows: (for self-design and processing of the core Mold cover

   The fasteners (such as screws, screw holes, etc.) in the plasticizing system and the die parts must be coated with high temperature oil (ie copper     disulfide) and then tightened.
