1 Die Head High Speed Blow Molding Machine For Plastic Toys 100L
-
High Light
Plastic Toys Blow Molding Machine
,100L High Speed Blow Molding Machine
,Accumulator Plastic Blow Moulding Machine
-
MaterialPE,PP,
-
Max Capacity100L
-
StationSingle
-
ProductPlastic Toys
-
Machine TypeTie Bar
-
Die Head1 Head
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLBC
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month
1 Die Head High Speed Blow Molding Machine For Plastic Toys 100L
High Speed Blow Molding Machine 1 Die Head for Plastic Toys
SLBC series: (German model)
High Speed Blow Molding Machine 1 Die Head for Plastic Toys, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.
High Speed Blow Molding Machine 1 Die Head for Plastic Toys,

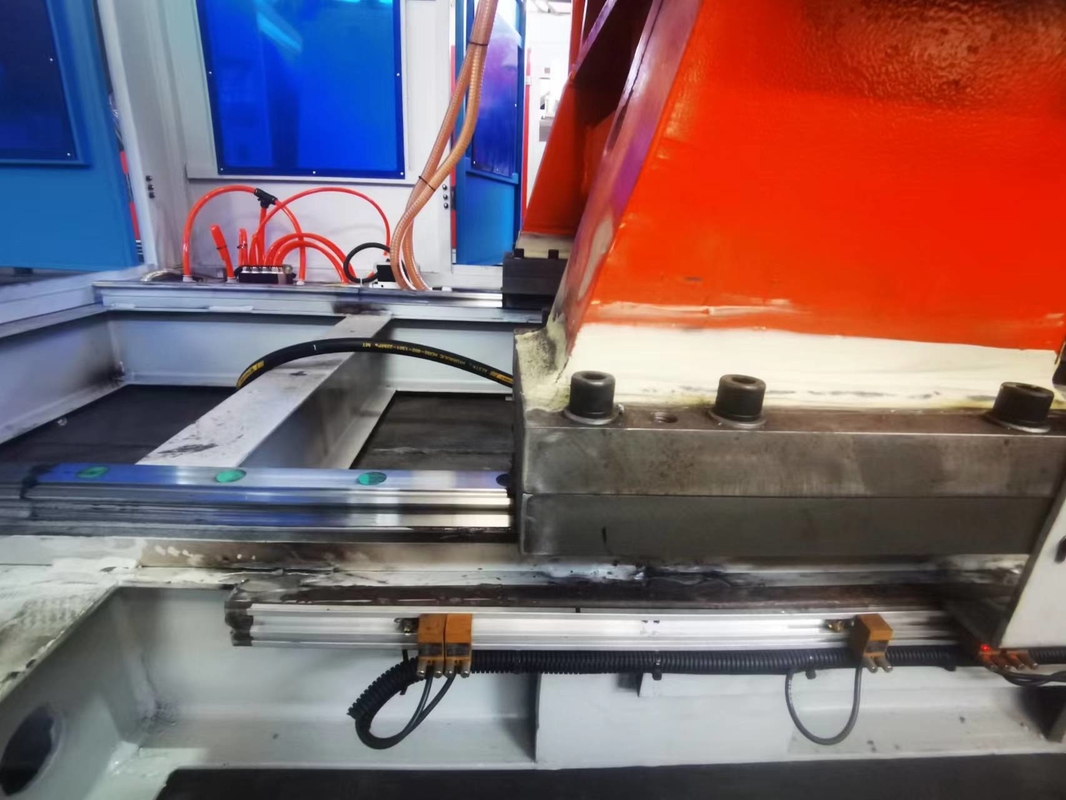

This part consists of a moving mold cylinder, a mold shifting shaft, a mold shifting guide, an opening and closing mold cylinder, a mold shifting seat, an inner and outer formwork, an outer pull arm, a support shaft, a template shaft, a bracket, a synchronous gear, a synchronous rack, and a inner pull arm and other components.
| SPECIFICATION | SLBC-120 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 160 |
| OUPUT(DRY CYCLE) | PC/HR | 300 |
| MACHINE DIMENSION (LxWxH ) | MM | 7500x4200x6200 |
| TOTAL WEIGHT | TON | 22T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 800 |
| PLATEN OPENING STROKE | MM | 600-1400 |
| PLATEN SIZE(WxH) | MM | 1400x1600 |
| MAX MOULD SIZE(WxH) | MM | 1200x1900 |
| MOLD THICKNESS | MM | 610-880 |

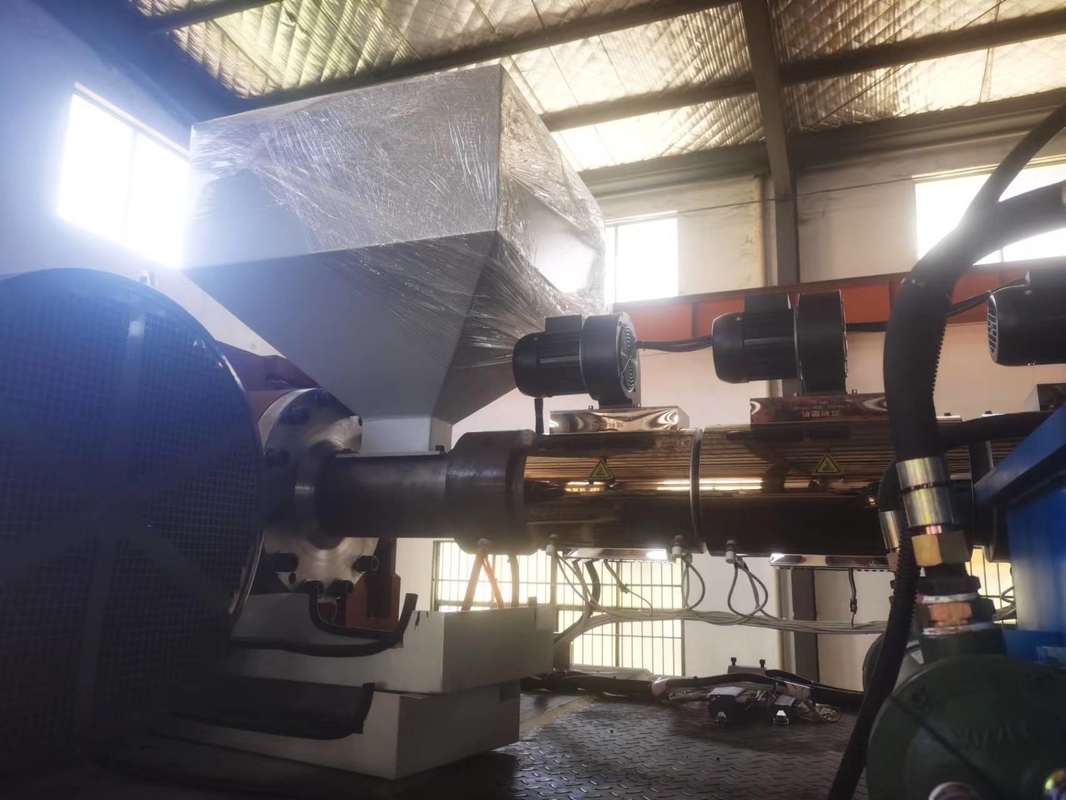

| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 120 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 280 |
| BARREL HEATING POWER | KW | 42 |
| NUMBER OF HEATING ZONE | ZONE | 6 |
| EXTRUDER MOTOR RATED POWER | KW | 90 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 5 |
| POWER OF DIE HEATING | KW | 38 |
| MAX DIE-PIN DIAMETER | MM | 500 |
| POWER | ||
| MAX DRIVE POWER | KW | 125 |
| TOTAL POWER | KW | 180 |
| FAN POWER OF SCREW | KW | 4.8 |
| AIR PRESSURE | MPA | 0.8-1.2 |
| AIR CONSUMPTION | M3/MIN | 0.8 |
| AVERAGE ENERGY CONSUMPTION | KW | 72 |
| ACCUMULATOR CAPACITY | L | 30 |
Our products are sold all over the world, you can rest assured.
