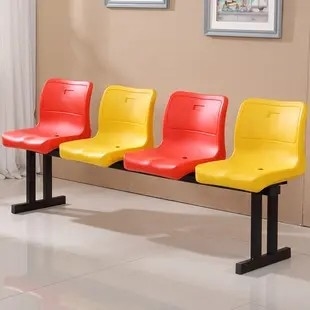

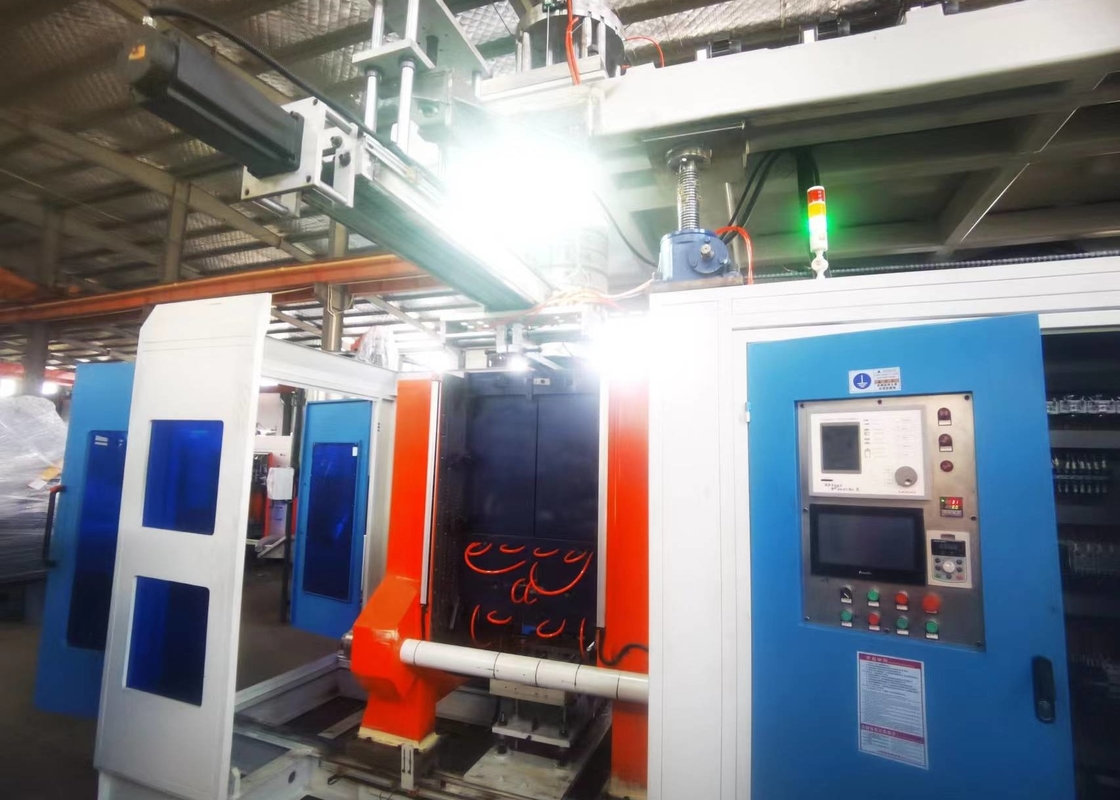

160L Accumulator Type Blow Moulding Machine For Plastic Seat Base

Accumulator Type Blow Moulding Machine For Plastic Seat Base

SLBC series: (German model)

1:Fully Automatic Blow Moulding Machine, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.

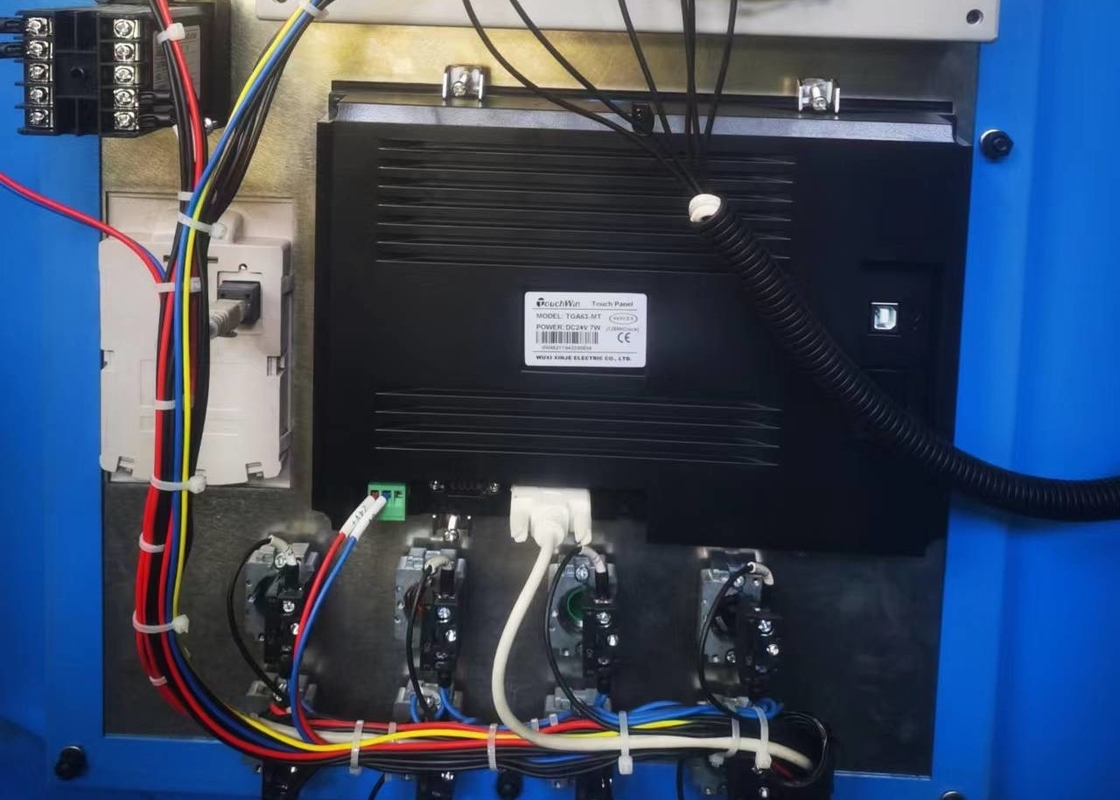

2:Fully Automatic Blow Moulding Machine, The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.

3. Fully Automatic Blow Moulding Machine,The operation panel is equipped with a power key switch, a touch display, an alarm, a cutter heat, a cycle start, an emergency stop, a twisted motor switch, a twister motor speed switch.

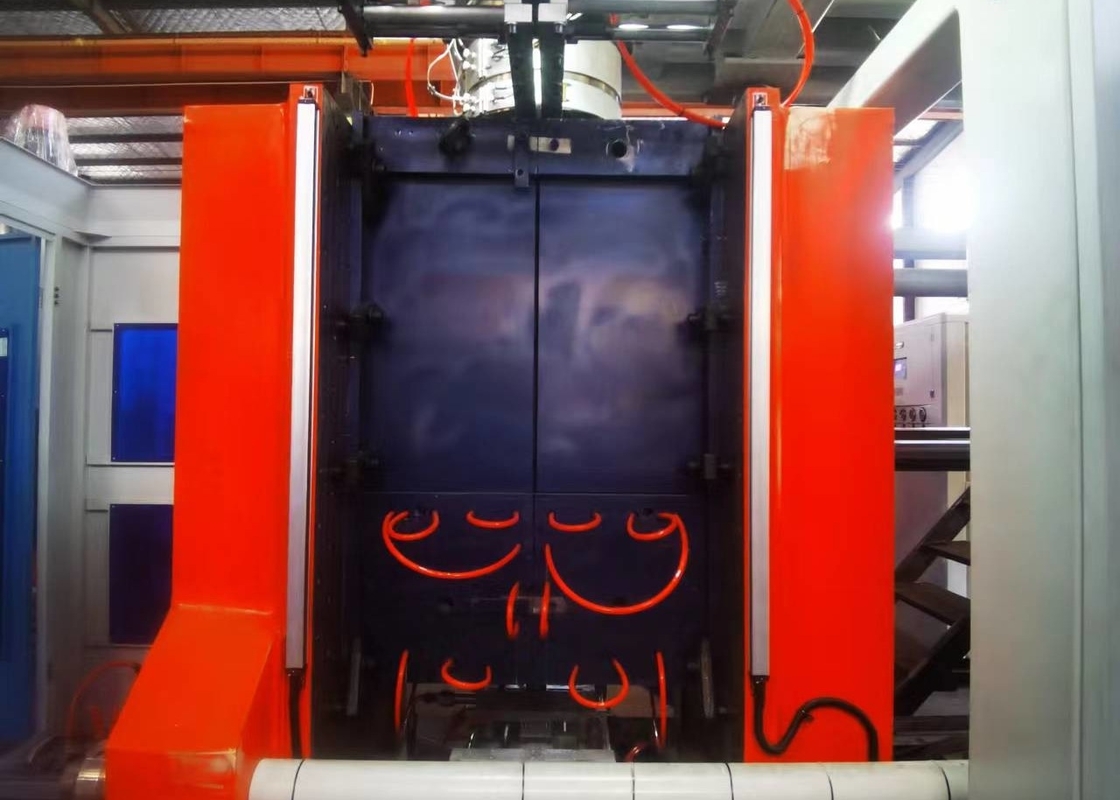

The opening and closing mechanism should be stable, reliable, fast and without impact when moving the mold. The mold shifting and opening and closing mechanism of the machine can meet the above requirements.

Since the mold shifting and opening and closing mechanism are frequently operated and the moving speed is fast, an automatic lubricating device is disposed, but the lubricating oil in the automatic lubricating device is also regularly inspected and filled. This will increase and extend the life of the machine, resulting in better economics. The movement mode of the mold shifting and opening and closing mold mechanism is fast, and it is necessary to pay great attention to safety during the installation of the mold, the debugging, and the adjustment process, especially when the two templates and the two sides of the mold shifting seat are in operation, please keep away from the safety.
