80L PE Extrusion Blow Moulding Machine For Plastic Traffic Fence

High Speed Extrusion Blow Moulding Machine For Plastic Traffic Fence​

SLBC series: (German model)

1:Fully Automatic Blow Moulding Machine, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.

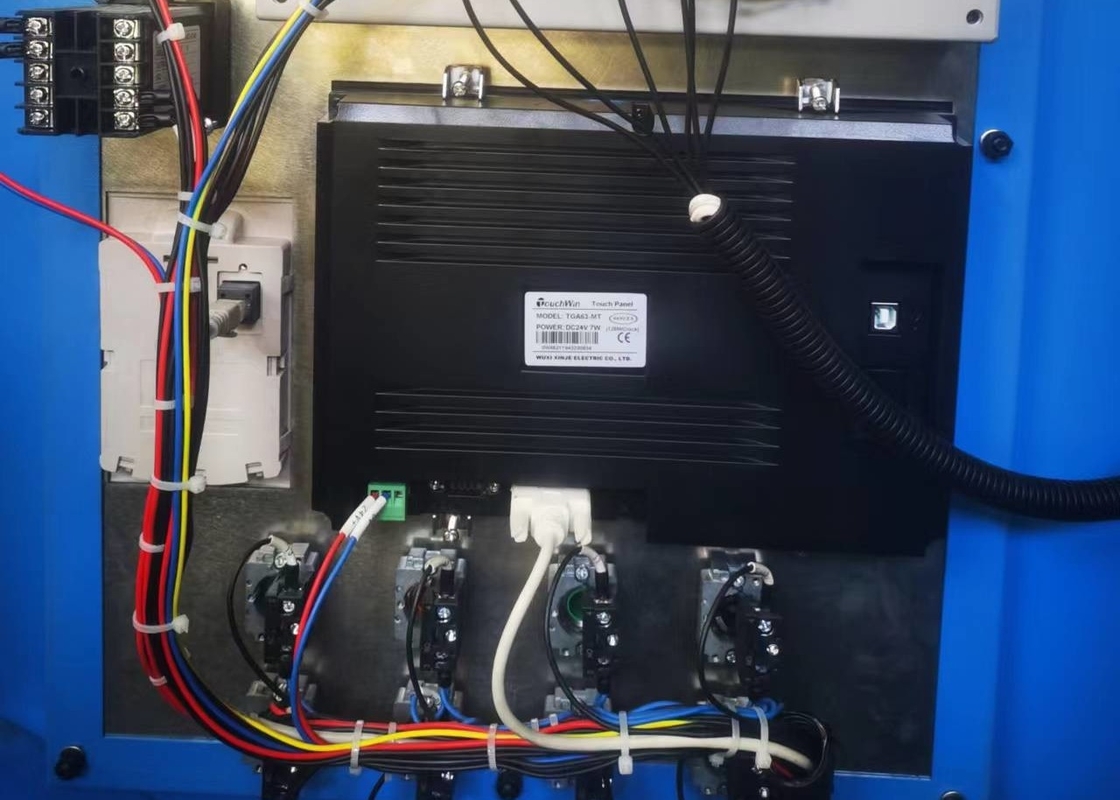

2:Fully Automatic Blow Moulding Machine, The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.

blowing device

cutter device

The cutter device is composed of a fixed plate, a cylinder block, a cutting blade, a coupling plate, a copper rod, a guide column, a cutter cylinder, a transition joint, an insulating spacer, etc., and the function is to cut off the glue tube between die head and mold after the mold clamping ; the cutting blade is heated at a high temperature, and the operator should pay attention to safety when adjusting and debugging. The guide post on the cutter unit should be refueled frequently to make it work properly.
