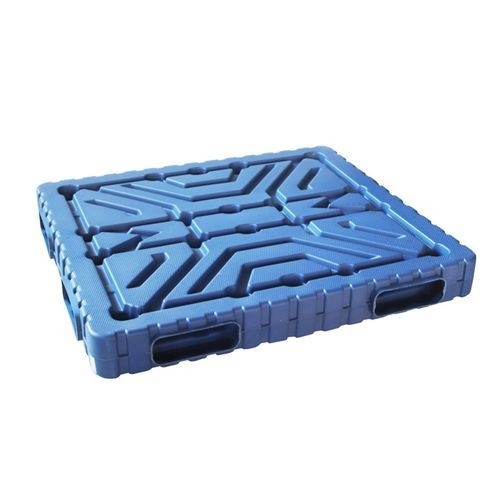

Single Staion Accumulator Blow Moulding Machine For Plastic Pallet High Speed

Single ​Staion High Speed Blow Moulding Machine For Plastic Pallet

SLBC series: (German model)

1:Fully Automatic Blow Moulding Machine, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.

2:Fully Automatic Blow Moulding Machine, The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.

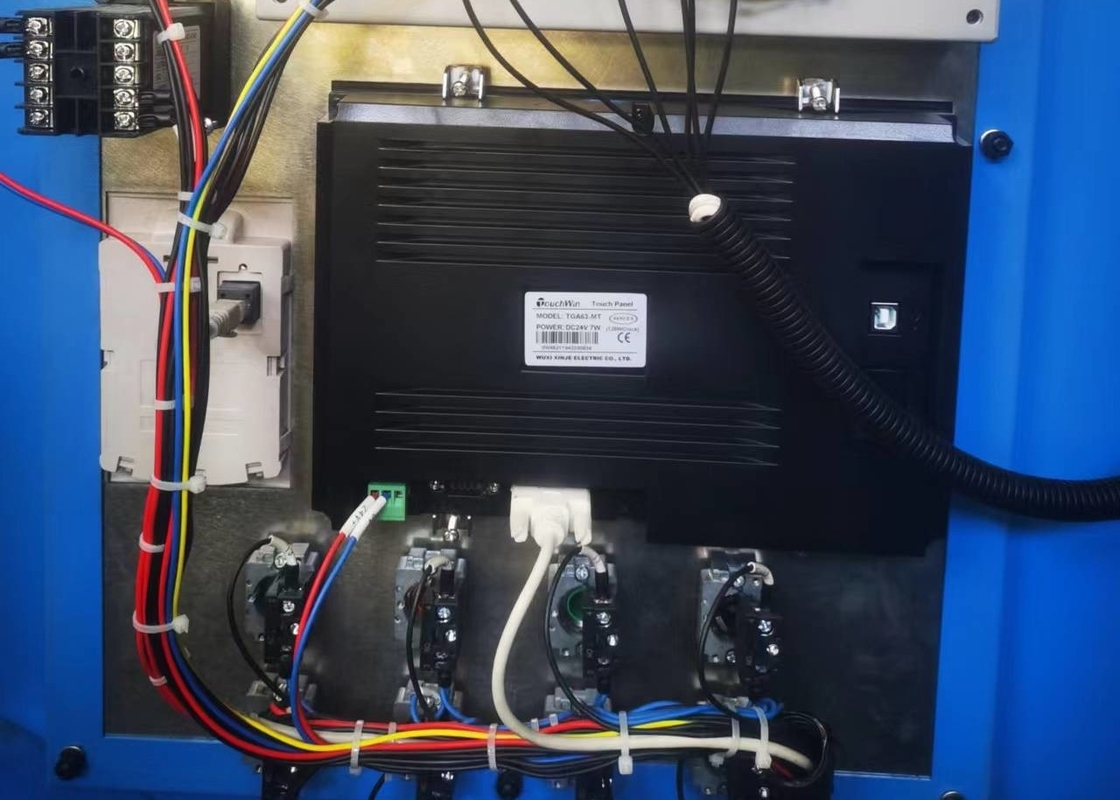

3. Fully Automatic Blow Moulding Machine,The operation panel is equipped with a power key switch, a touch display, an alarm, a cutter heat, a cycle start, an emergency stop, a twisted motor switch, a twister motor speed switch.

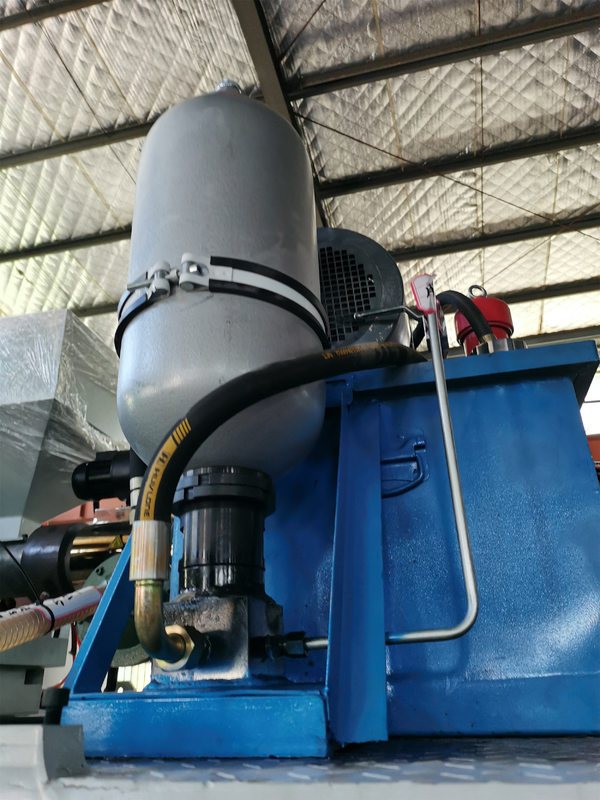

Before the new machine is turned on, the fuel tank is filled with hydraulic oil. When the hydraulic oil is filled, the hydraulic oil must be filtered first. When starting the oil pump for the first time, first open the oil inlet ball valve, then loosen the pressure adjustment screw of the proportional relief valve, adjust the pressure to the minimum, and loosen the bleed screw on the proportional relief valve to start the oil pump. After 2-3 hours of no-load operation, tighten the bleeder screw on the proportional relief valve and tighten it with the pressure adjustment screw to adjust the system pressure to the working state.
