Extrusion Accumulator Blow Moulding Machine High Speed For Plastic Chair

High Speed Extrusion Blow Moulding Machine For Plastic Chair​

SLBC series: (German model)

1:Fully Automatic Blow Moulding Machine, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.

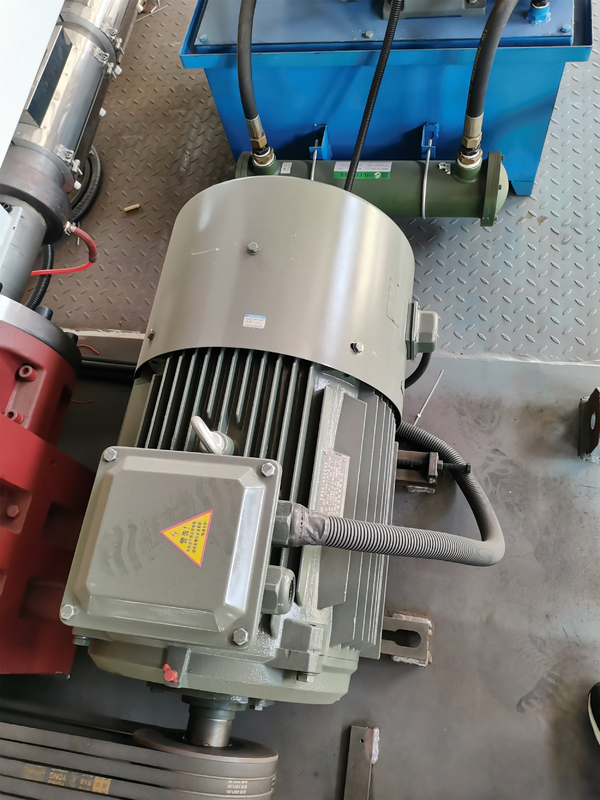

2:Fully Automatic Blow Moulding Machine, The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.

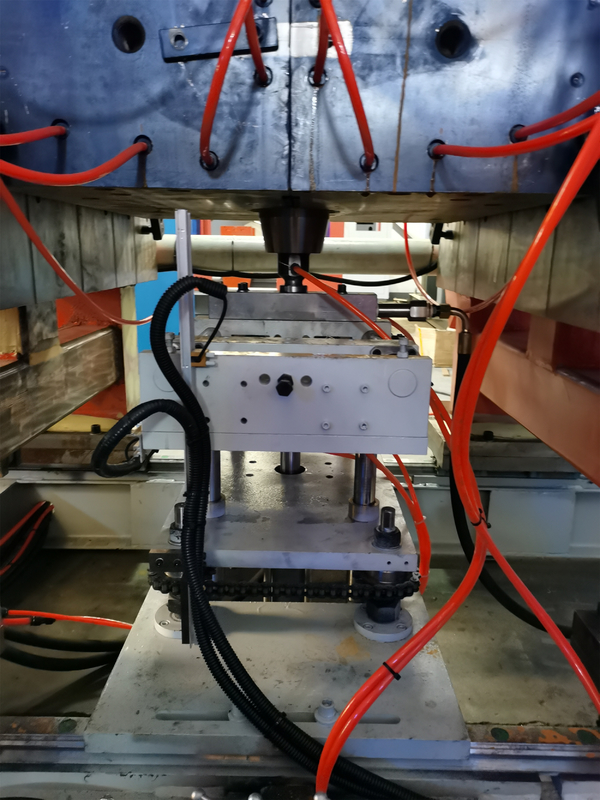

blowing device

Pneumatic system

The pneumatic system consists of a water gas separator, an oil mister, a pressure regulating valve, a directional control valve, and a cylinder.

In addition to providing compressed air for inflation molding, the pneumatic system also has the function of driving the cylinder. The filter pressure reducing valve of the pneumatic system regulates the system pressure, and the system pressure is generally adjusted to 0.4-0.6Mpa. The pressure is adjusted by first pulling the pressure adjustment handwheel up to the adjustment position, turning the handwheel, adjusting to the pressure gauge to display the required pressure, and then pressing the adjustment handwheel downward.
