1 Die Head Accumulator Blow Moulding Machine For Plastic Traffic Guardrail
-
High Light
1 Die Head Accumulator Molding Machine
,Plastic Traffic Guardrail Blow Moulding Machine
,130L Accumulator Blow Moulding Machine
-
MaterialPE,PP,EVA,ABS
-
Max Capacity130L-160L
-
StationSingle Station
-

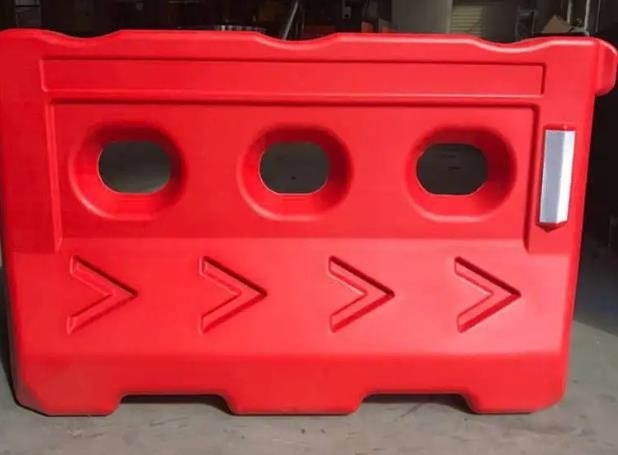

ProductTraffic Guardrail
-
Machine TypeAccumulator-tie Bar Type
-
Die Head1 Head
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLBC
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month
1 Die Head Accumulator Blow Moulding Machine For Plastic Traffic Guardrail
1 Die Head Accumulator Blow Moulding Machine For Plastic Traffic Guardrail
SLBC series: (German model)
1:Fully Automatic Blow Moulding Machine, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.

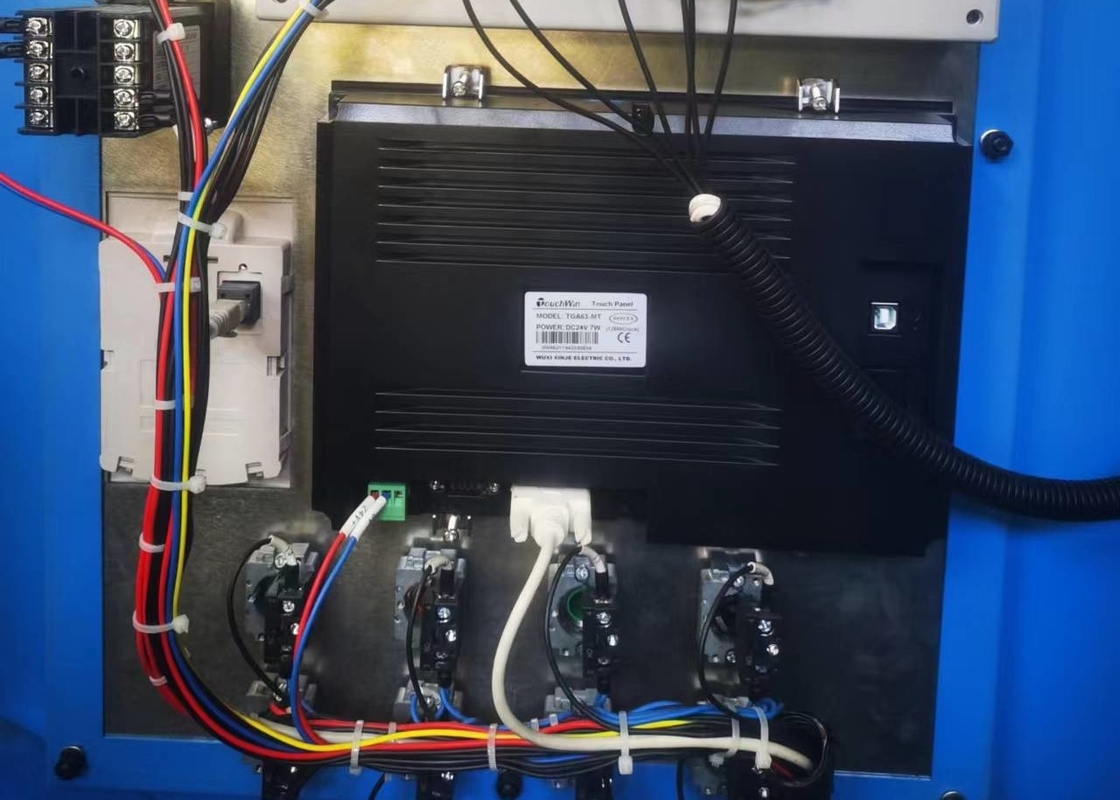

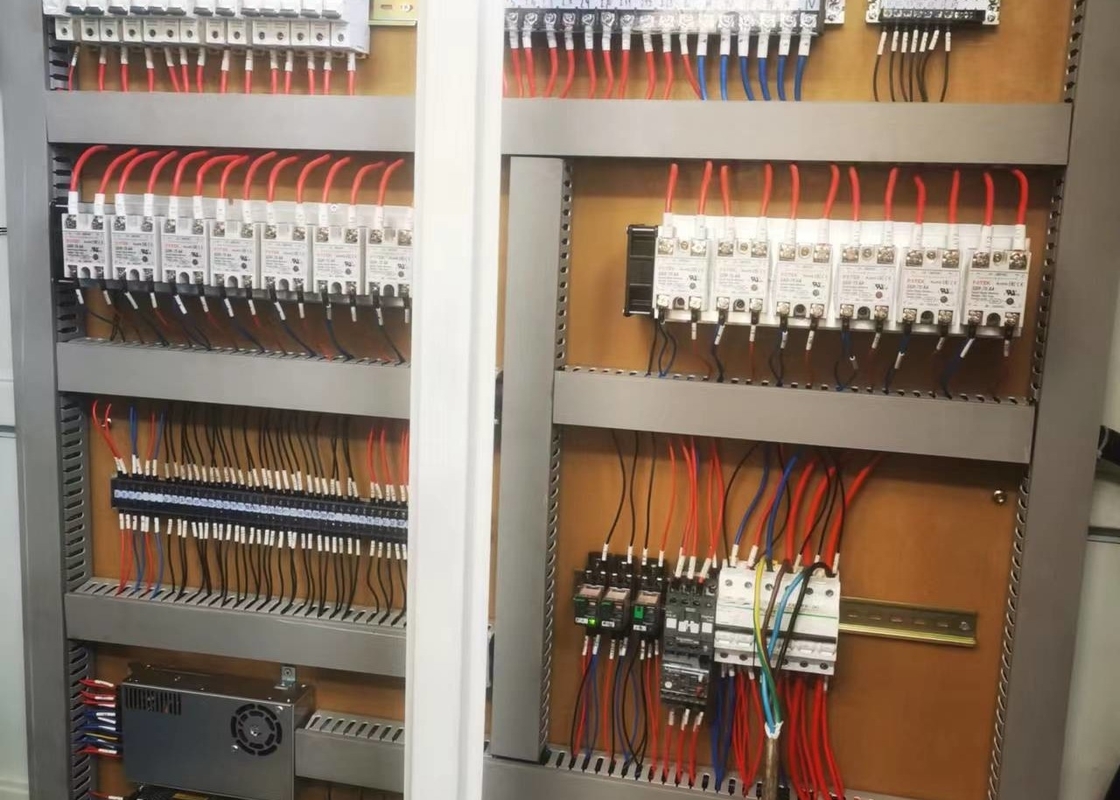

2:Fully Automatic Blow Moulding Machine, The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.
3.Cooling system

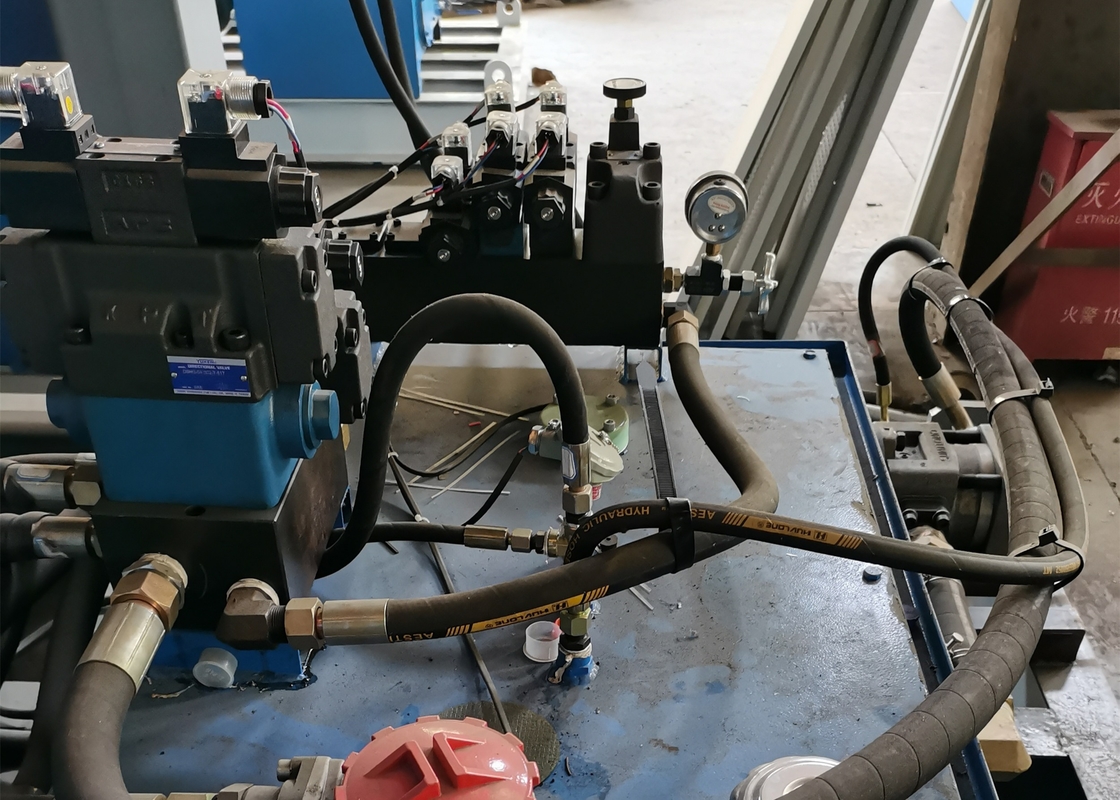

The cooling system consists of an oil cooler, barrel cooling, blow head cooling, gearbox cooling, and mold cooling. The oil cooler in the cooling system is the protector of the hydraulic system. Excessive oil temperature in the hydraulic system can make the machine work abnormally. The temperature rise of the hydraulic oil is mainly caused by the heating of the system itself, and the power consumption is represented by the loss of flow and pressure, and finally converted into heat energy. The oil temperature of the hydraulic system is required to be 30-55 degrees.
| SPECIFICATION | SLBC-120 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 160 |
| OUPUT(DRY CYCLE) | PC/HR | 300 |
| MACHINE DIMENSION (LxWxH ) | MM | 7500x4200x6200 |
| TOTAL WEIGHT | TON | 22T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 800 |
| PLATEN OPENING STROKE | MM | 600-1400 |
| PLATEN SIZE(WxH) | MM | 1400x1600 |
| MAX MOULD SIZE(WxH) | MM | 1200x1900 |
| MOLD THICKNESS | MM | 610-880 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 120 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 280 |
| BARREL HEATING POWER | KW | 42 |
| NUMBER OF HEATING ZONE | ZONE | 6 |
| EXTRUDER MOTOR RATED POWER | KW | 90 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 5 |
| POWER OF DIE HEATING | KW | 38 |
| MAX DIE-PIN DIAMETER | MM | 500 |
| POWER | ||
| MAX DRIVE POWER | KW | 125 |
| TOTAL POWER | KW | 180 |
| FAN POWER OF SCREW | KW | 4.8 |
| AIR PRESSURE | MPA | 0.8-1.2 |
| AIR CONSUMPTION | M3/MIN | 0.8 |
| AVERAGE ENERGY CONSUMPTION | KW | 72 |
| ACCUMULATOR CAPACITY | L | 30 |
Our products are sold all over the world, you can rest assured.
