Single Head Accumulator Single Station Blow Moulding Machine For Plastic Chair Base

Single Head Accumulator Single Station Blow Moulding Machine For Plastic Chair Base

Products - Accumulator Blow Moulding Machine
  • High Light

    60L Single Station Blow Moulding Machine

    ,

    Plastic Chair Base Blow Molding Machine

    ,

    Accumulator Single Station Blow Moulding Machine

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    60L-120L
  • Head
    Single Head
  • Product

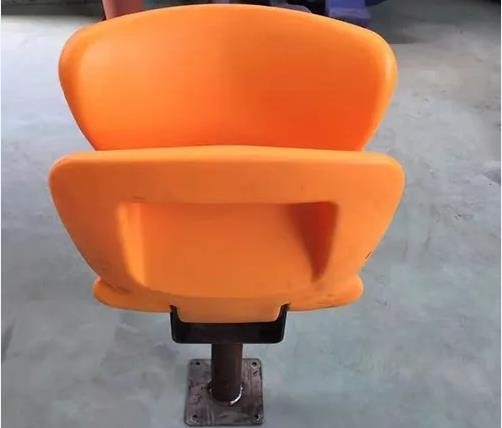

    Plastic Chair
  • Machine Type
    Accumulator Type -tie Bar Type
  • Speed
    High Speed Single Station
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBC
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

Single Head Accumulator Single Station Blow Moulding Machine For Plastic Chair Base

  • Single Head Accumulator Single Station Blow Moulding Machine For Plastic Chair Base
  • Single Head Accumulator Single Station Blow Moulding Machine For Plastic Chair Base
  • Single Head Accumulator Single Station Blow Moulding Machine For Plastic Chair Base
  • Single Head Accumulator Single Station Blow Moulding Machine For Plastic Chair Base
Get Price Contact Now

High Speed Single Head Single Station Blow Moulding Machine For Plastic Chair Base



SLBC series: (German model)

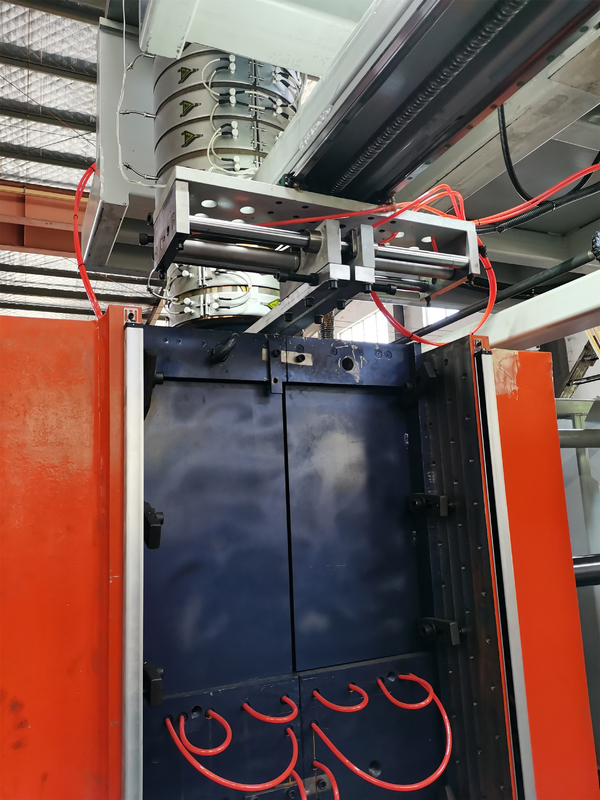

1:Fully Automatic Blow Moulding Machine, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.

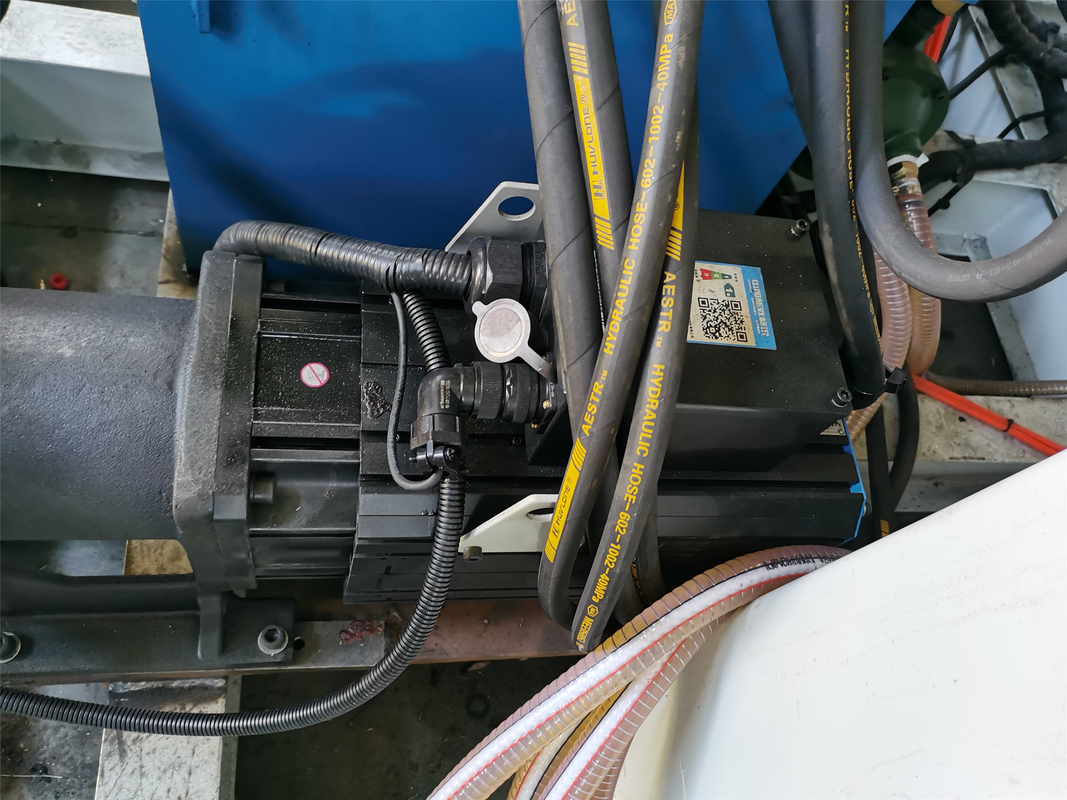

2:Fully Automatic Blow Moulding Machine, The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.

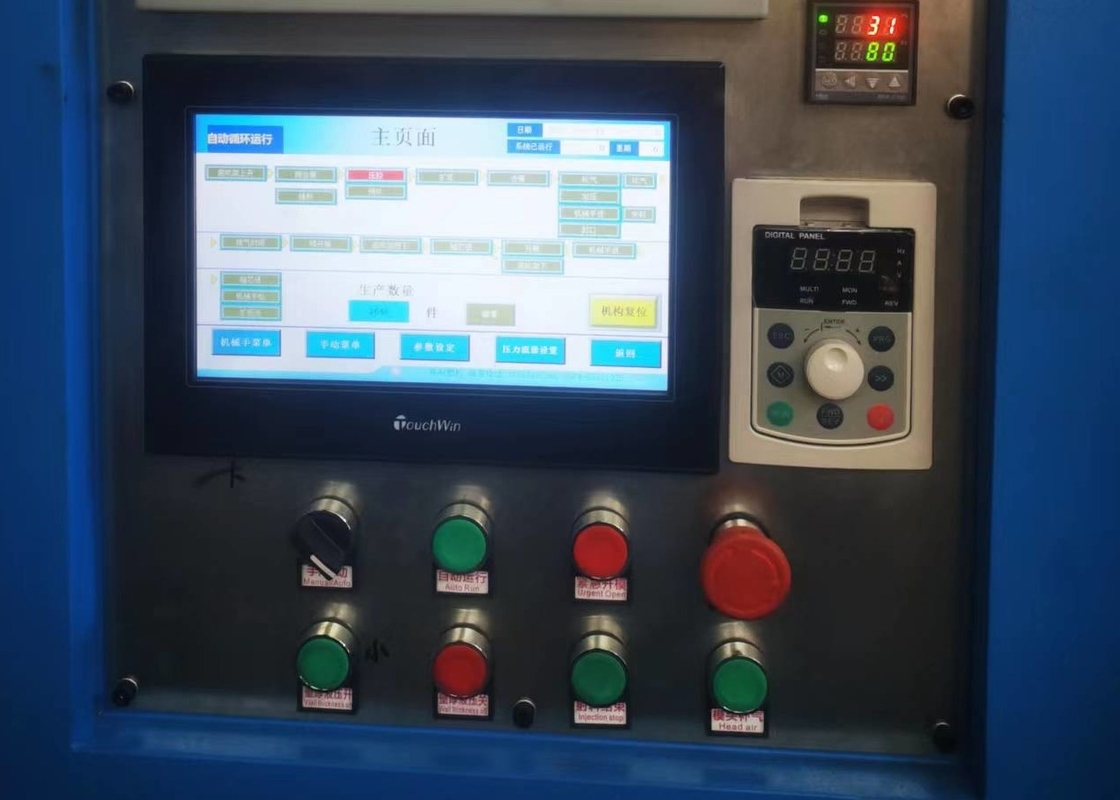

3.Electronic control system



The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.





SPECIFICATION SLBC-120
MATERIAL 　 PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 160
OUPUT(DRY CYCLE) PC/HR 300
MACHINE DIMENSION (LxWxH ) MM 7500x4200x6200
TOTAL WEIGHT TON 22T
CLAMPING UNIT 　
CLAMPING FORCE KN 800
PLATEN OPENING STROKE MM 600-1400
PLATEN SIZE(WxH) MM 1400x1600
MAX MOULD SIZE(WxH) MM 1200x1900
MOLD THICKNESS MM 610-880
EXTRUDER UNIT 　
SCREW DIAMETER MM 120
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 280
BARREL HEATING POWER KW 42
NUMBER OF HEATING ZONE ZONE 6
EXTRUDER MOTOR RATED POWER KW 90
DIE HEAD 　
NUMBER OF DIE HEATING ZONE ZONE 5
POWER OF DIE HEATING KW 38
MAX DIE-PIN DIAMETER MM 500
POWER 　
MAX DRIVE POWER KW 125
TOTAL POWER KW 180
FAN POWER OF SCREW KW 4.8
AIR PRESSURE MPA 0.8-1.2
AIR CONSUMPTION M3/MIN 0.8
AVERAGE ENERGY CONSUMPTION KW 72
ACCUMULATOR CAPACITY L 30
