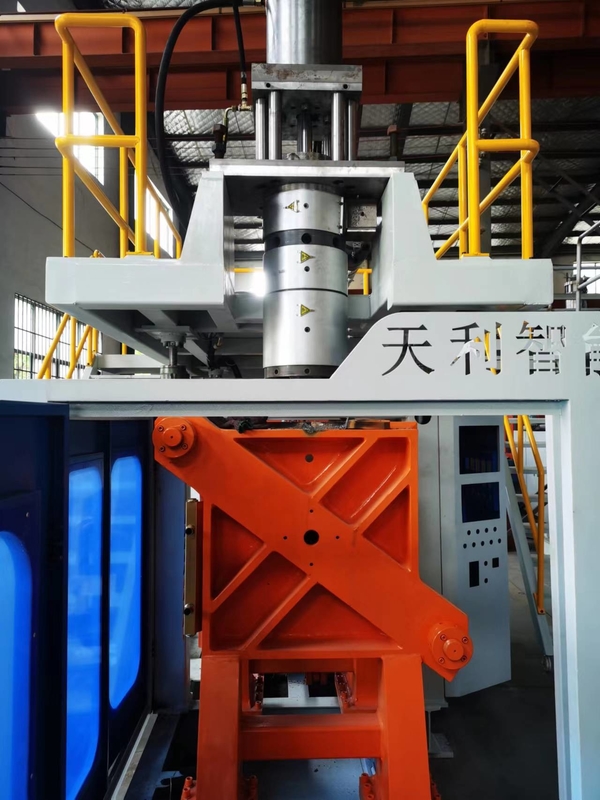

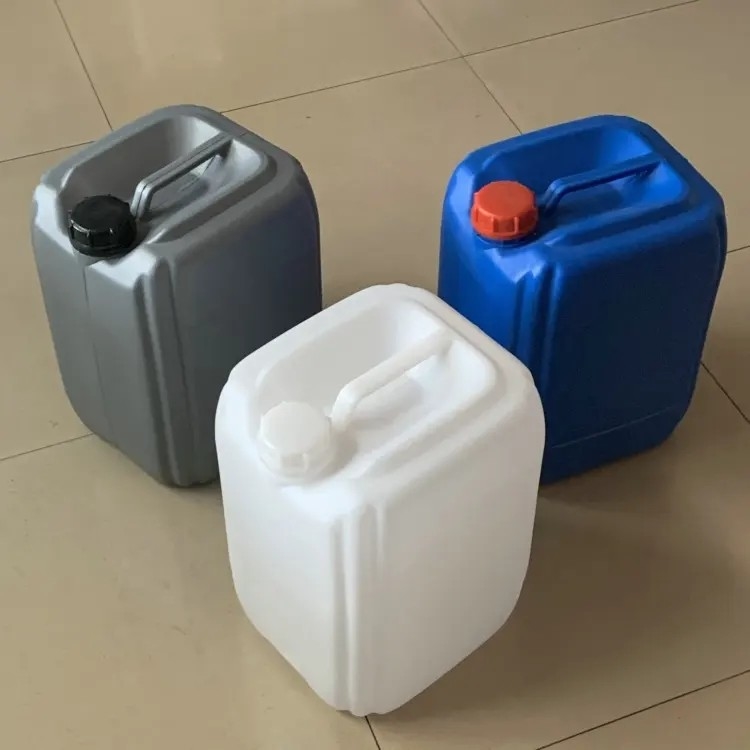

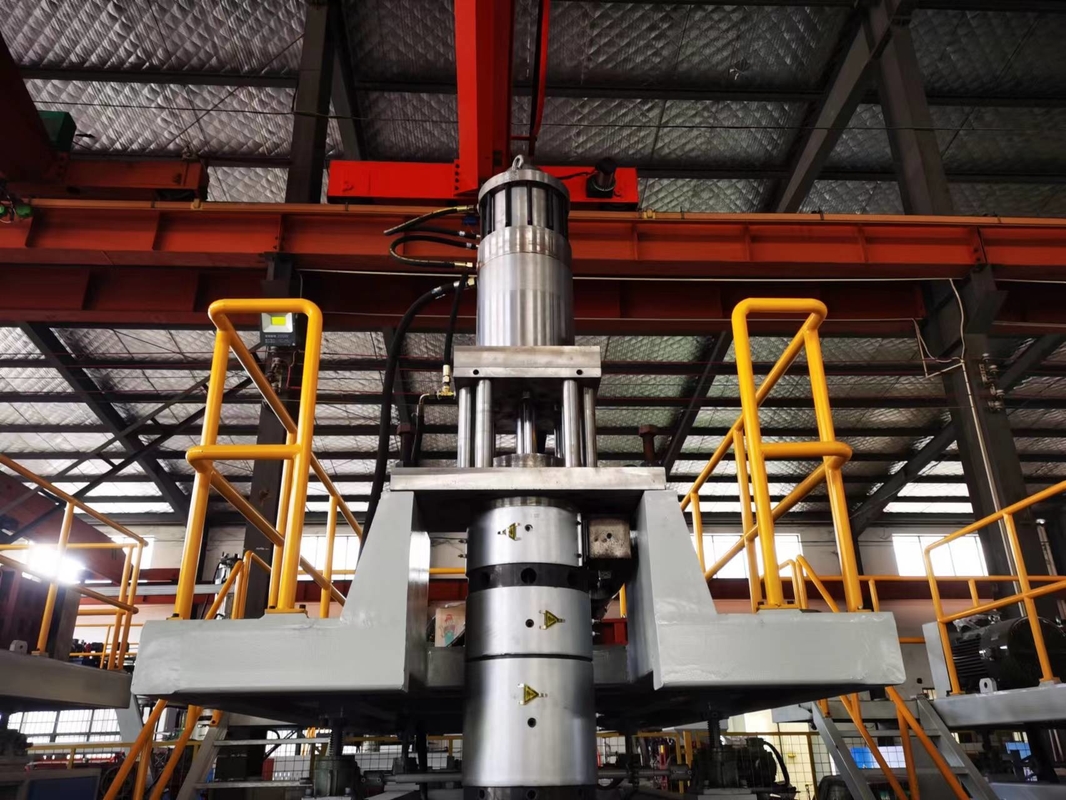

Automatic Single Head Station ​Blow Moulding Machine For 25L Chemical Bottle

25L Chemical Barrel Single Head Station ​Blow Moulding Machine High Speed

SLBC series: (German model)

1:Fully Automatic Blow Moulding Machine, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.

2:Fully Automatic Blow Moulding Machine, The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.

3.In the temperature parameter setting screen, set the set value, the upper limit, the lower limit, the lower limit, and the control state of each temperature used. The setting method: just click on the value of the set value, the upper limit, the lower limit and the lower limit of each piece of temperature, a keyboard for inputting the value will be automatically popped up, click the value to be set, and then press the enter key to confirm the value and Store, click on the control status of each temperature used, and set it to the running status. After setting it, click the “Back” button to control the main screen. Click the "warm" button and open the automatic air switches in the box one by one, so that the barrel and the die start to warm up.
