20L - 30L Chemical Drum Single Head Station ​Blow Moulding Machine High Speed

20L-30L Chemical Drum Single Head Station ​Blow Moulding Machine High Speed

SLBC series: (German model)

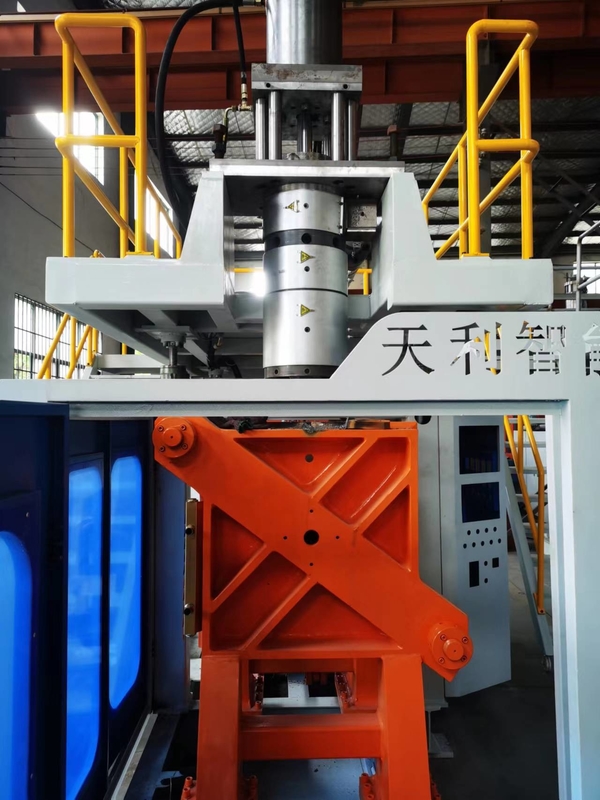

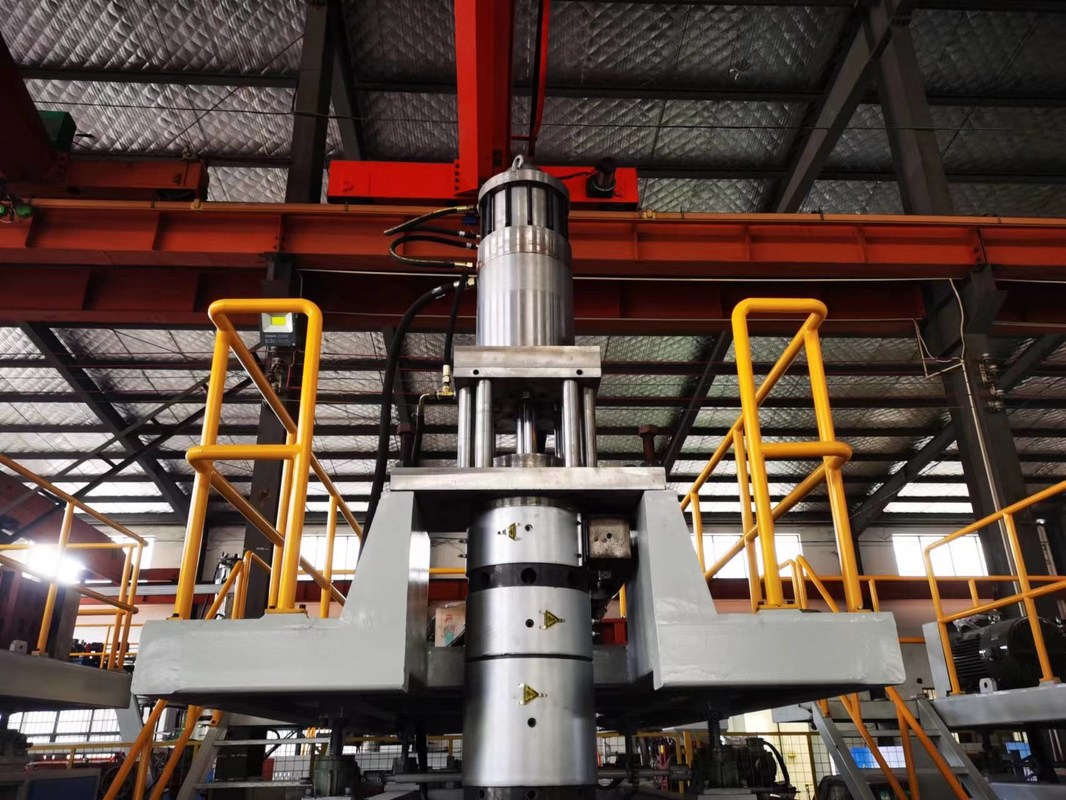

1:Fully Automatic Blow Moulding Machine, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.

2:Fully Automatic Blow Moulding Machine, The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.

3. Manual operation screen:

On the mold base: Click the “Up” button, and the mold opening and closing mechanism will have the upper mold shifting action.Note: When the opening and closing mold is closed, when the needle is in the lower position, click the “up” button, there will be no upper mold movement. When the upper mold end point is approached and the switch is operated, the upper mold movement stops. .

Under the mold base: Click the “Down” button, and the mold opening and closing mechanism will have the lower mold shifting action. Note: When the opening and closing mold is closed, when the needle is in the lower position, click this button, there will be no downward movement, so Opening and closing mode
