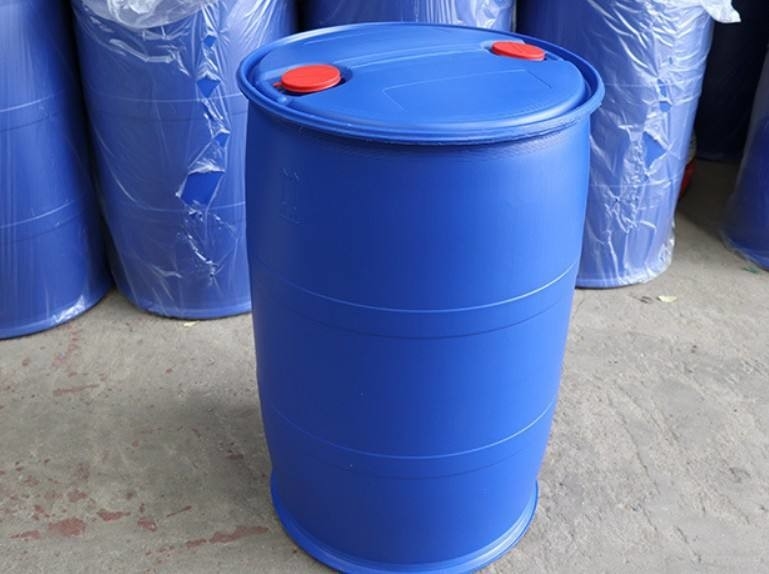

Automatic Accumulator Blow Moulding Machine For 200L Chemical Drum

Automatic Accumulator Blow Moulding Machine For 200L Chemical Drum

SLBC series: (German model)

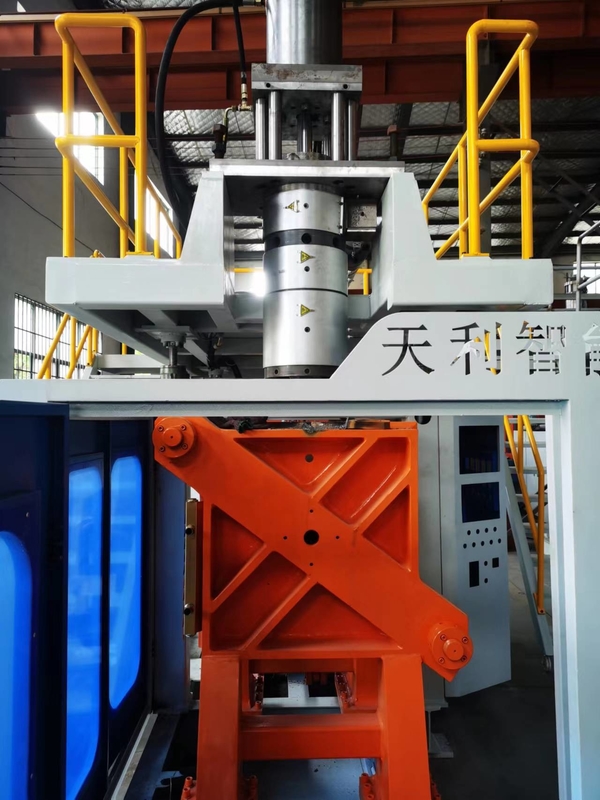

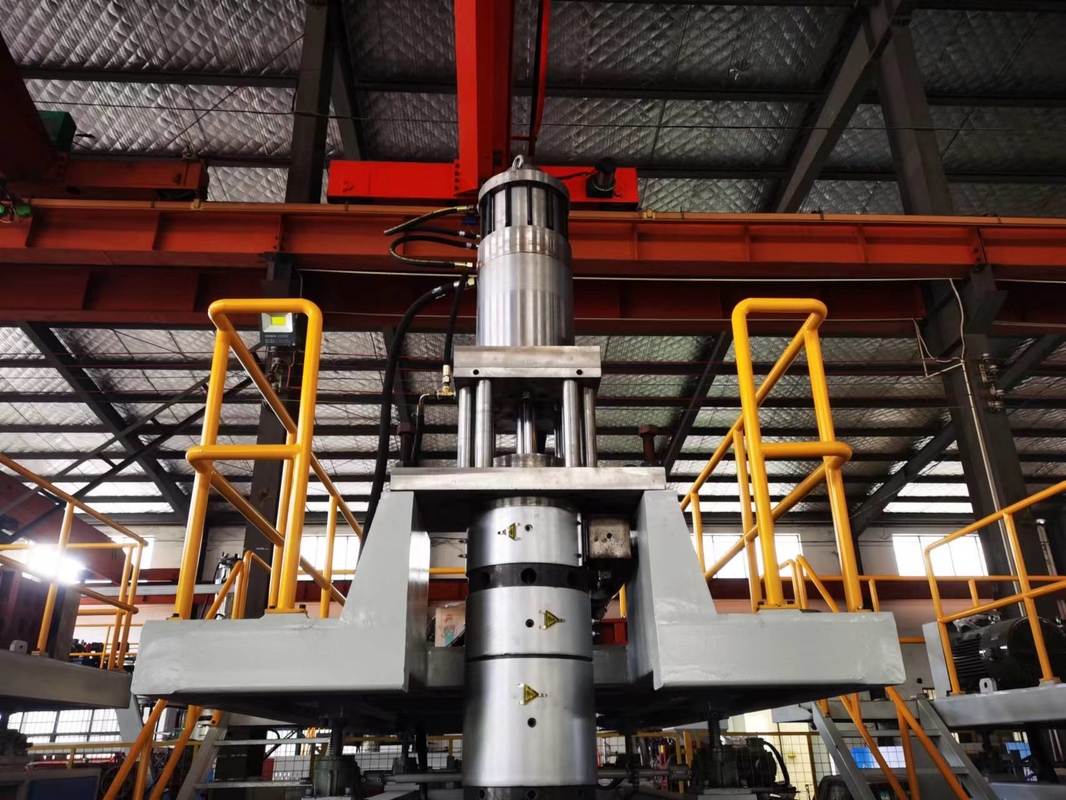

1:Fully Automatic Blow Moulding Machine, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.

2:Fully Automatic Blow Moulding Machine, The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.

Die drop: Click the “Down” button and the die will lower downward until the cylinder is in the end, and the action stops.

Cutter: Click the “Cutter” button, the cutter will send a command to make the PLC internal relay close, and then send it to the solenoid of the pneumatic solenoid valve to make the solenoid valve work, and send the air pressure to the cylinder end to push The piston performs the cutter action. When you click the "Cutter" button again, the cutter action stops.

Going to the flash: It works like the cutter.
