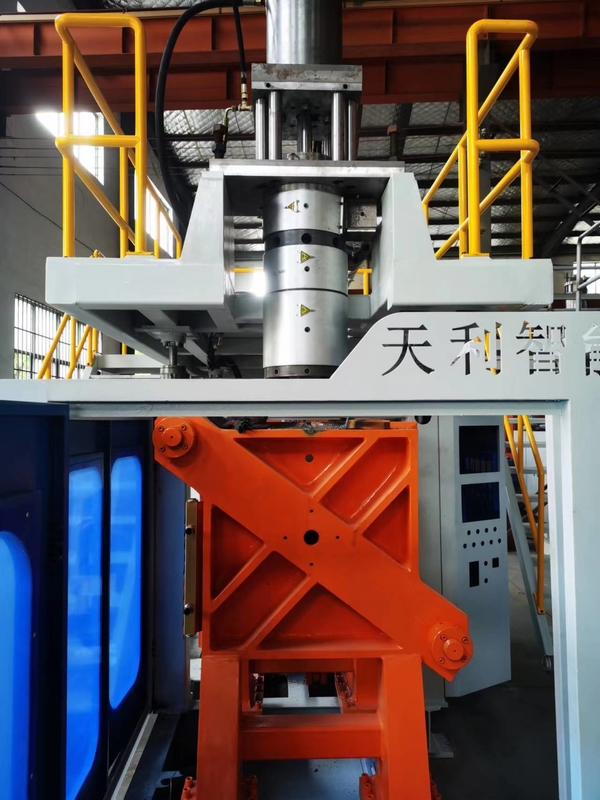

High Speed Accumulator Blow Moulding Machine For 200L Chemical Bottle
SLBC series: (German model)

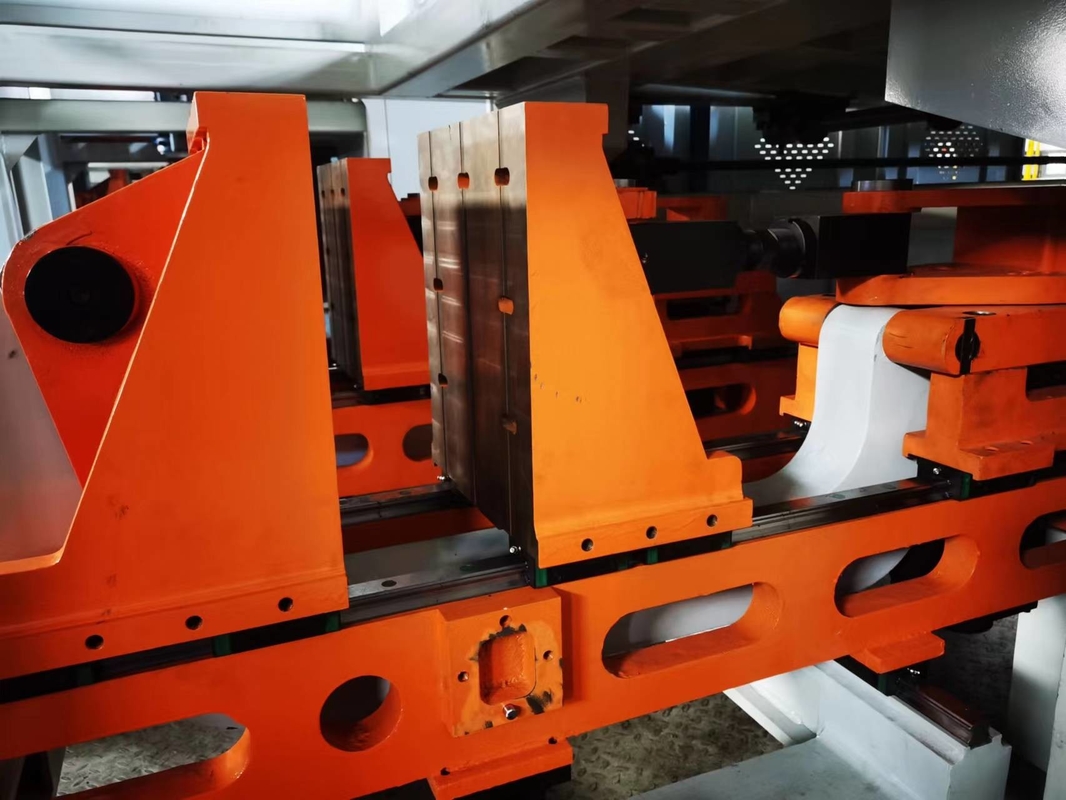

1:Fully Automatic Blow Moulding Machine, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.
2:Fully Automatic Blow Moulding Machine, The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.
Mold blowing: press and hold the button, the molding blowing action command is transmitted to the PLC, and the PLC sends a command to make the PLC internal relay close and electrify, and then send it to the gas circuit solenoid valve coil to make the solenoid valve work, and put The air pressure is sent to the blowing head for molding blowing. Release the button and the action stops.
SPECIFICATION | SLBC-120 | |
MATERIAL | PE,PP,EVA,ABS,PS | |
MAX CONTAINER CAPACITY | L | 160 |
OUPUT(DRY CYCLE) | PC/HR | 300 |
MACHINE DIMENSION (LxWxH ) | MM | 7500x4200x6200 |
TOTAL WEIGHT | TON | 22T |
CLAMPING UNIT | ||
CLAMPING FORCE | KN | 800 |
PLATEN OPENING STROKE | MM | 600-1400 |
PLATEN SIZE(WxH) | MM | 1400x1600 |
MAX MOULD SIZE(WxH) | MM | 1200x1900 |
MOLD THICKNESS | MM | 610-880 |
EXTRUDER UNIT | ||
SCREW DIAMETER | MM | 120 |
SCREW L/D RATIO | L/D | 25 |
MELTING CAPACITY | KG/HR | 280 |
BARREL HEATING POWER | KW | 42 |
NUMBER OF HEATING ZONE | ZONE | 6 |
EXTRUDER MOTOR RATED POWER | KW | 90 |

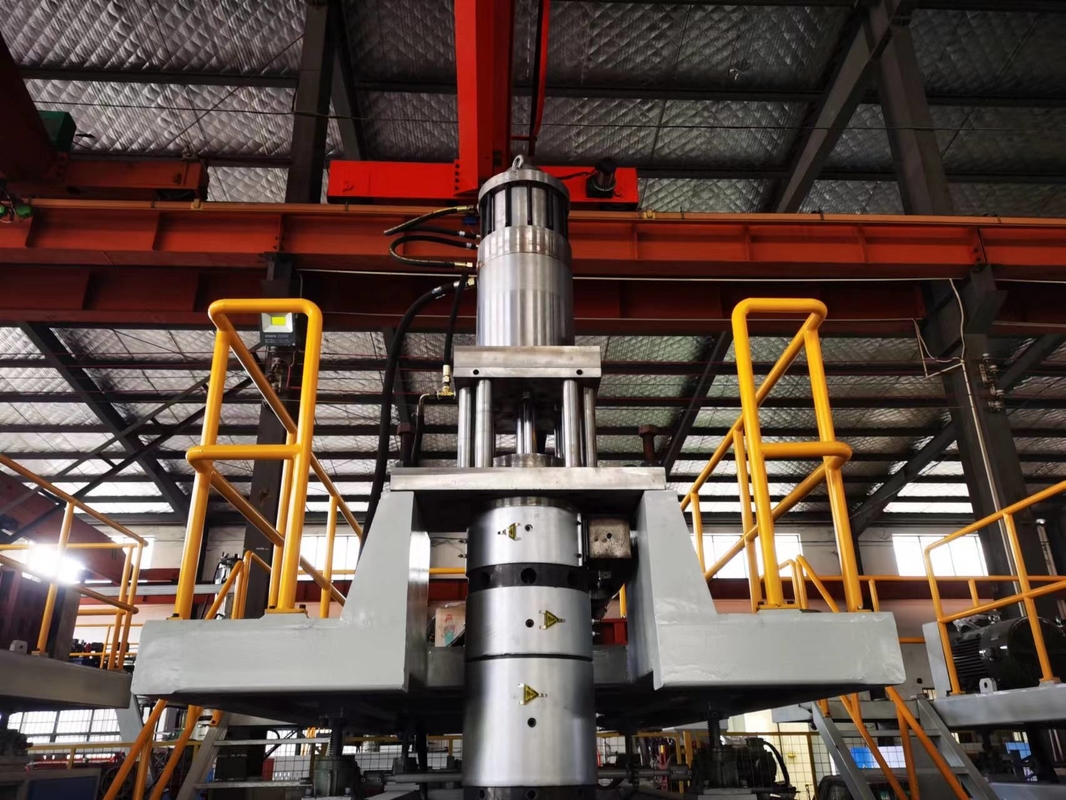

DIE HEAD | ||
NUMBER OF DIE HEATING ZONE | ZONE | 5 |
POWER OF DIE HEATING | KW | 38 |
MAX DIE-PIN DIAMETER | MM | 500 |
POWER | ||
MAX DRIVE POWER | KW | 125 |
TOTAL POWER | KW | 180 |
FAN POWER OF SCREW | KW | 4.8 |
AIR PRESSURE | MPA | 0.8-1.2 |
AIR CONSUMPTION | M3/MIN | 0.8 |
AVERAGE ENERGY CONSUMPTION | KW | 72 |
ACCUMULATOR CAPACITY | L | 30 |
