50L Bucket Accumulator Blow Moulding Machine Tie Bar Type High Speed
-
High Light
50L Bucket Accumulator Blow Moulding Machine
,Single Head Accumulator Blow Molding Machine
,High Speed Accumulator Blow Molding Equipment
-
MaterialPE,PP,EVA,ABS,PS
-
Max Capacity50L Bucket
-
HeadSingle Head And Single Station
-
ProductChemical Stacking Bucket 50L
-
Machine TypeTie Bar Type
-
PLCSIEMENS PLC GERMANY
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLBC
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month

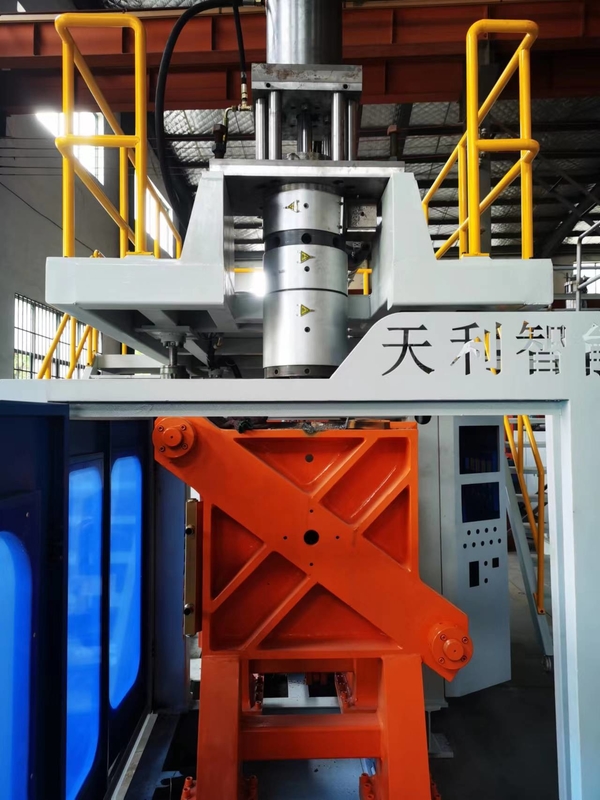

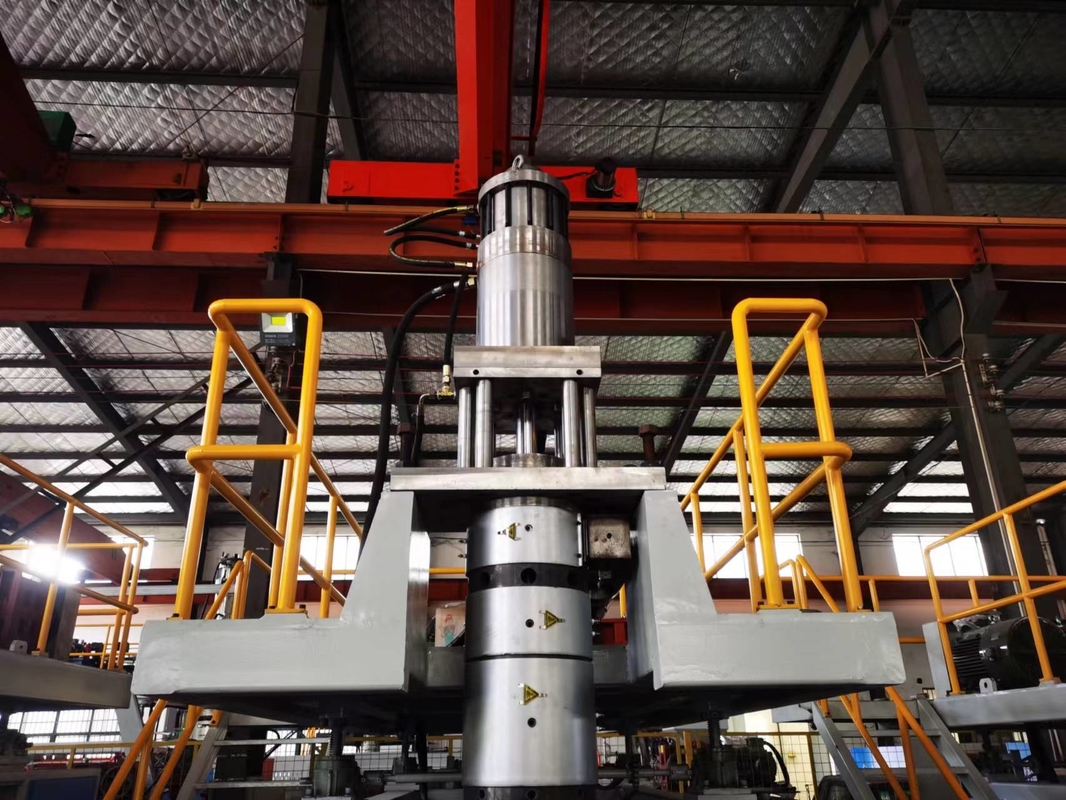

50L Bucket Accumulator Blow Moulding Machine Tie Bar Type High Speed
Accumulator High Speed Blow Moulding Machine For 50L Chemical Stacking Bucket
SLBC series: (German model)
1:Fully Automatic Blow Moulding Machine, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.
2:Fully Automatic Blow Moulding Machine, The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.
Temperature parameter setting screen:
Upper bias: When the current value is higher than the set value and exceeds the upper deviation, the heating stops working. If there is a cooling fan, the cooling fan starts to cool.
Lower bias: When the current value is lower than the set value and lower than the lower deviation, the heating starts to work. If the cooling fan is working, it stops working.
| SPECIFICATION | SLBC-120 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 160 |
| OUPUT(DRY CYCLE) | PC/HR | 300 |
| MACHINE DIMENSION (LxWxH ) | MM | 7500x4200x6200 |
| TOTAL WEIGHT | TON | 22T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 800 |
| PLATEN OPENING STROKE | MM | 600-1400 |
| PLATEN SIZE(WxH) | MM | 1400x1600 |
| MAX MOULD SIZE(WxH) | MM | 1200x1900 |
| MOLD THICKNESS | MM | 610-880 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 120 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 280 |
| BARREL HEATING POWER | KW | 42 |
| NUMBER OF HEATING ZONE | ZONE | 6 |
| EXTRUDER MOTOR RATED POWER | KW | 90 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 5 |
| POWER OF DIE HEATING | KW | 38 |
| MAX DIE-PIN DIAMETER | MM | 500 |
| POWER | ||
| MAX DRIVE POWER | KW | 125 |
| TOTAL POWER | KW | 180 |
| FAN POWER OF SCREW | KW | 4.8 |
| AIR PRESSURE | MPA | 0.8-1.2 |
| AIR CONSUMPTION | M3/MIN | 0.8 |
| AVERAGE ENERGY CONSUMPTION | KW | 72 |
| ACCUMULATOR CAPACITY | L | 30 |
Our products are sold all over the world, you can rest assured.
