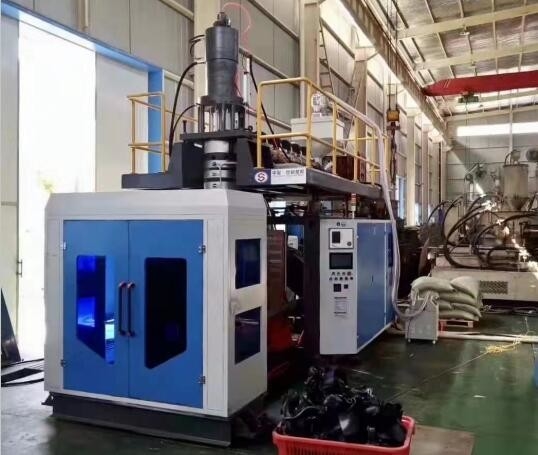

Tie Bar Accumulator Head Blow Molding Machine For 20L - 200L Chemical Stacking Bucket

Tie Bar Accumulator Head Blow Molding Machine For 20L - 200L Chemical Stacking Bucket

  • High Light

    20L Accumulator Head Blow Molding Machine

    ,

    Accumulator High Speed Blow Molding Machine

    ,

    Single Accumulator Head Blow Molding Machine

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    20L-200L Bucket
  • Station
    Single Station And Single Station
  • Product

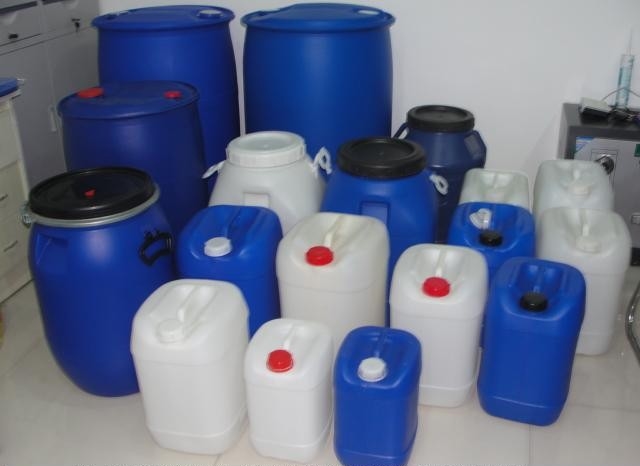

    Chemical Stacking Bucket 20-200l
  • Machine Type
    Tie Bar Type
  • PLC
    GERMANY SIEMENS PLC
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBC
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

Tie Bar Accumulator Head Blow Molding Machine For 20L - 200L Chemical Stacking Bucket

Accumulator High Speed Blow Moulding Machine For 20L-200L Chemical Stacking Bucket



SLBC series: (German model)



1:Fully Automatic Blow Moulding Machine, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.



2:Fully Automatic Blow Moulding Machine, The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.





Lower limit: When the current value is lower than the set value and reaches the lower limit value, an alarm will be issued. At this time, the operator should check the heating condition of the alarm, such as whether the heater, thermocouple, etc. work normally.



Status: It shows the working status of heating and the working status of the fan.



Control: It has two functions, one is disconnected, the other is running, the running means that the temperature control section works in the system, and the disconnection means that the temperature control section is disconnected from the temperature control system.



SPECIFICATION SLBC-120
MATERIAL   PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 160
OUPUT(DRY CYCLE) PC/HR 300
MACHINE DIMENSION (LxWxH ) MM 7500x4200x6200
TOTAL WEIGHT TON 22T

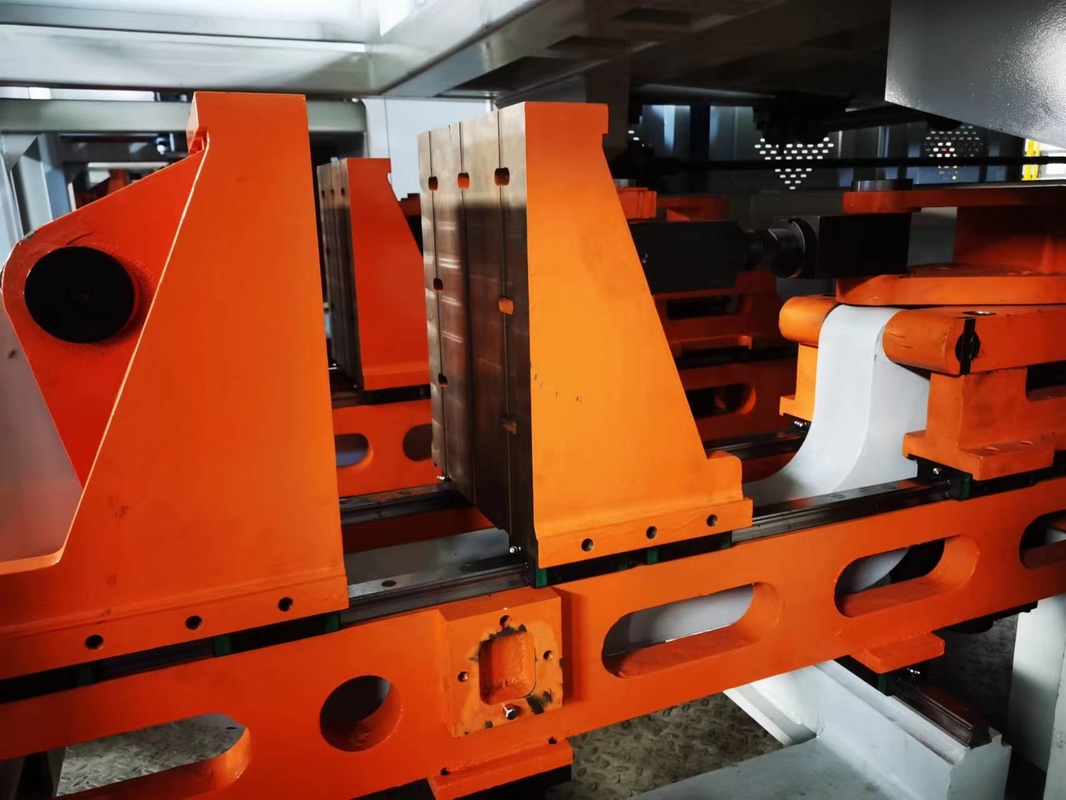

CLAMPING UNIT
CLAMPING FORCE KN 800
PLATEN OPENING STROKE MM 600-1400
PLATEN SIZE(WxH) MM 1400x1600
MAX MOULD SIZE(WxH) MM 1200x1900
MOLD THICKNESS MM 610-880
EXTRUDER UNIT
SCREW DIAMETER MM 120
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 280
BARREL HEATING POWER KW 42
NUMBER OF HEATING ZONE ZONE 6
EXTRUDER MOTOR RATED POWER KW 90

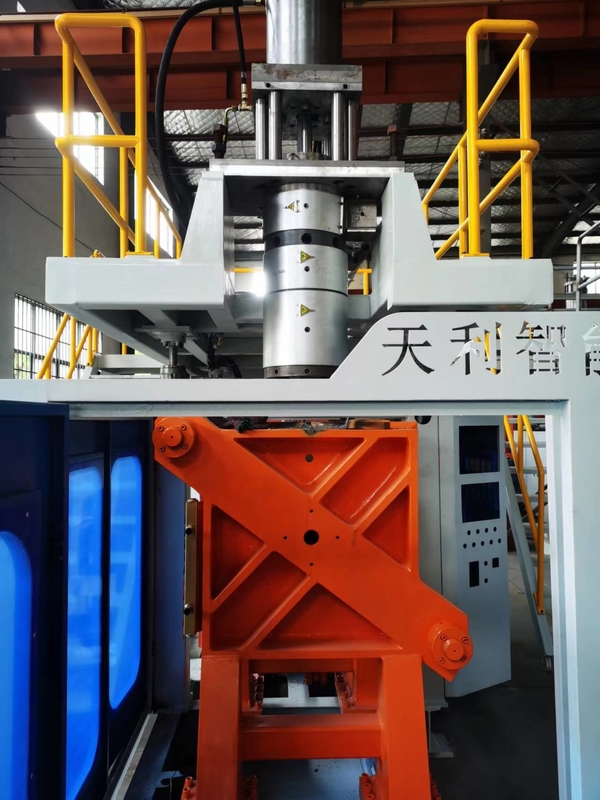

DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 5
POWER OF DIE HEATING KW 38
MAX DIE-PIN DIAMETER MM 500
POWER
MAX DRIVE POWER KW 125
TOTAL POWER KW 180
FAN POWER OF SCREW KW 4.8
AIR PRESSURE MPA 0.8-1.2
AIR CONSUMPTION M3/MIN 0.8
AVERAGE ENERGY CONSUMPTION KW 72
ACCUMULATOR CAPACITY L 30
