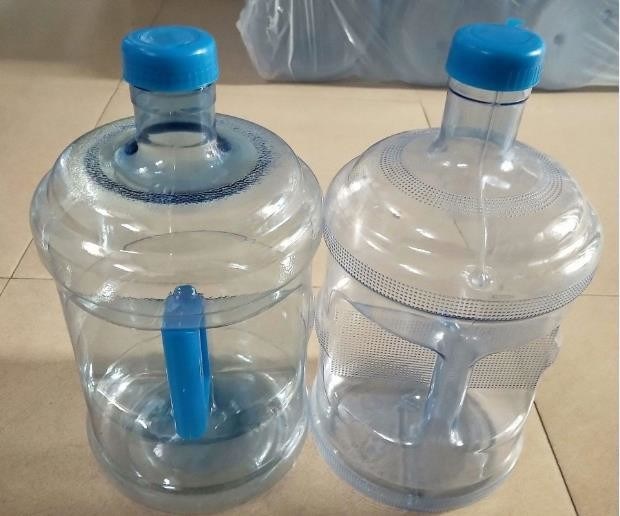

Tie Bar Head Accumulator Blow Moulding Machine 5 Gallon PC Water Bottle

5 Gallon PC Bottle Fully Automatic Blow Moulding Machine Tie Bar Accumulator Head

SLBC series: (German model)

1: linear guide support single frame, finite element analysis of the design, to ensure adequate clamping force, not up mode.

2: Cooling water is passed through the needle to ensure that the product is molded and the product is cooled quickly to facilitate demolding. Mold cooling is an important guarantee for the molding of plastic hollow products. After the parison is inflated and close to the mold cavity, the parison is cooled and shaped by the mold to shape the product. The mold temperature is generally controlled at 20-30 degrees, and the mold temperature distribution is required to be uniform.

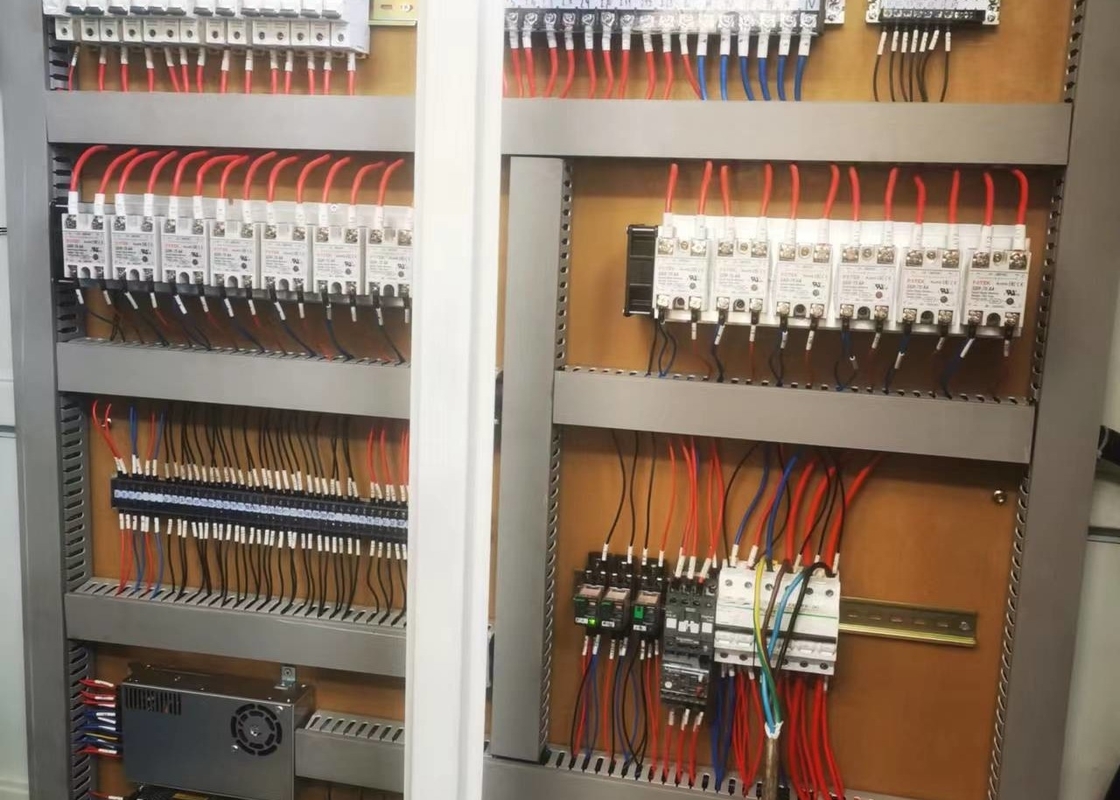

3.The maximum system pressure of this machine is 100bar, and the corresponding analog division is 0~999. The hydraulic system of the machine adopts electro-hydraulic proportional pressure control. Each action pressure can be adjusted arbitrarily according to the action of the machine. The analog control mode of the pressure is: any pressure in the pressure parameter setting screen in the touch screen is arbitrary. After setting, press the test “OFF” button, the PLC will transmit to the analog module according to the set pressure analog quantity, and then the corresponding proportional current will be sent to the proportional board by the analog quantity module, and then scaled and processed by the proportional board.
