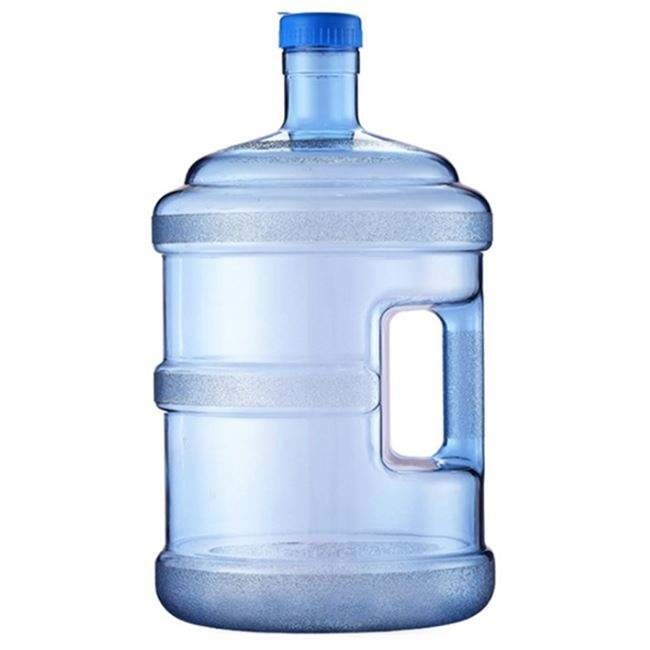

5 Gallon Water Bottle Fully Automatic Blow Moulding Machine With Handle

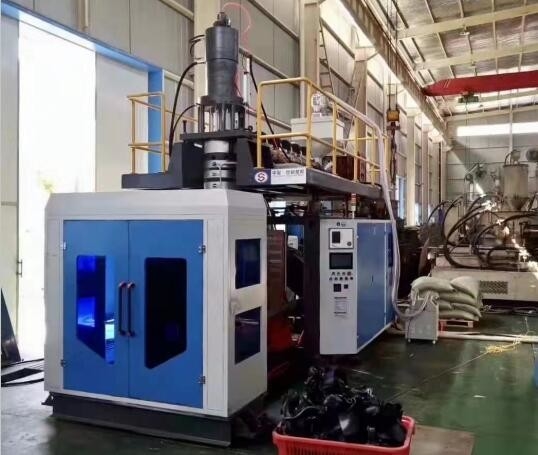

5 Gallon Water Bottle with Handle Fully Automatic Blow Moulding Machine

SLBC series: (German model)

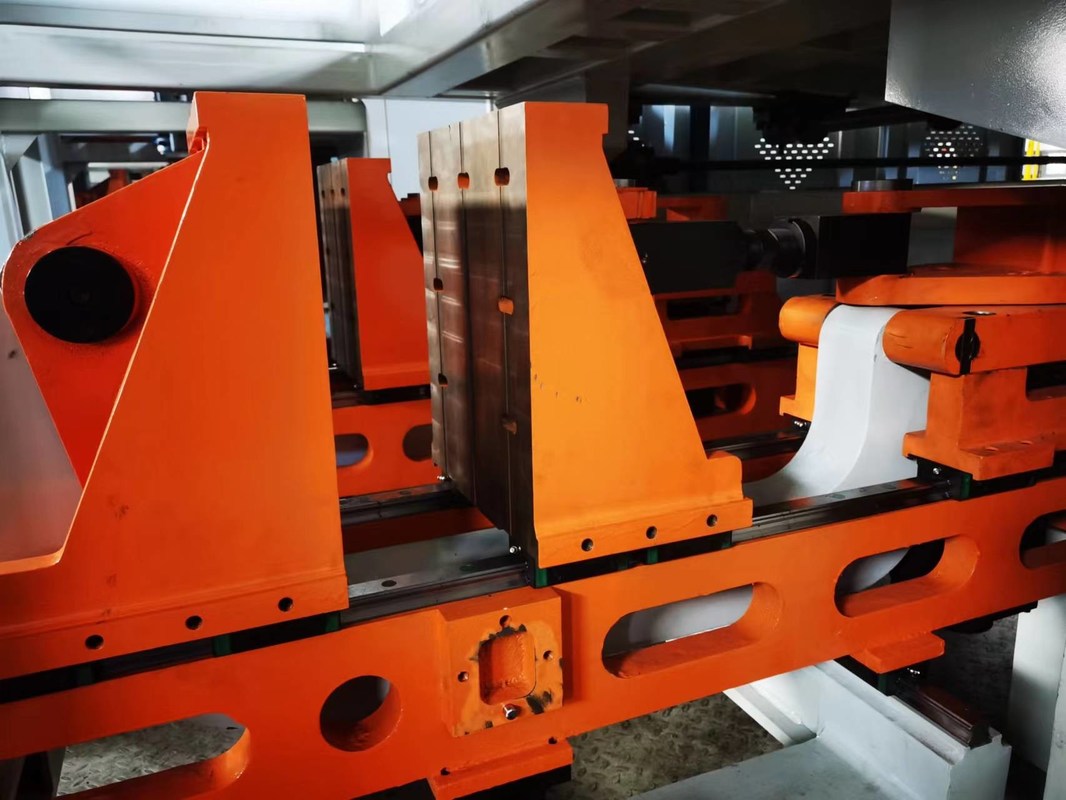

1: linear guide support single frame, finite element analysis of the design, to ensure adequate clamping force, not up mode.

2: Cooling water is passed through the needle to ensure that the product is molded and the product is cooled quickly to facilitate demolding. Mold cooling is an important guarantee for the molding of plastic hollow products. After the parison is inflated and close to the mold cavity, the parison is cooled and shaped by the mold to shape the product. The mold temperature is generally controlled at 20-30 degrees, and the mold temperature distribution is required to be uniform.

3.The amplified proportional current is delivered to the proportional valve coil to operate the proportional valve while achieving the corresponding operating pressure. The pressure is adjusted by first setting any pressure parameter in the touch screen to 999, then pressing the “OFF” test button, and slowly rotating the pressure adjustment screw on the proportional relief valve clockwise, and observing the pressure gauge. Pressure pointer, when the pressure pointer on the pressure gauge points to 100 bar, stop the rotation and lock the screw on the upper nut to prevent the screw from loosening, so that the maximum pressure of the whole system is always 100 bar.
